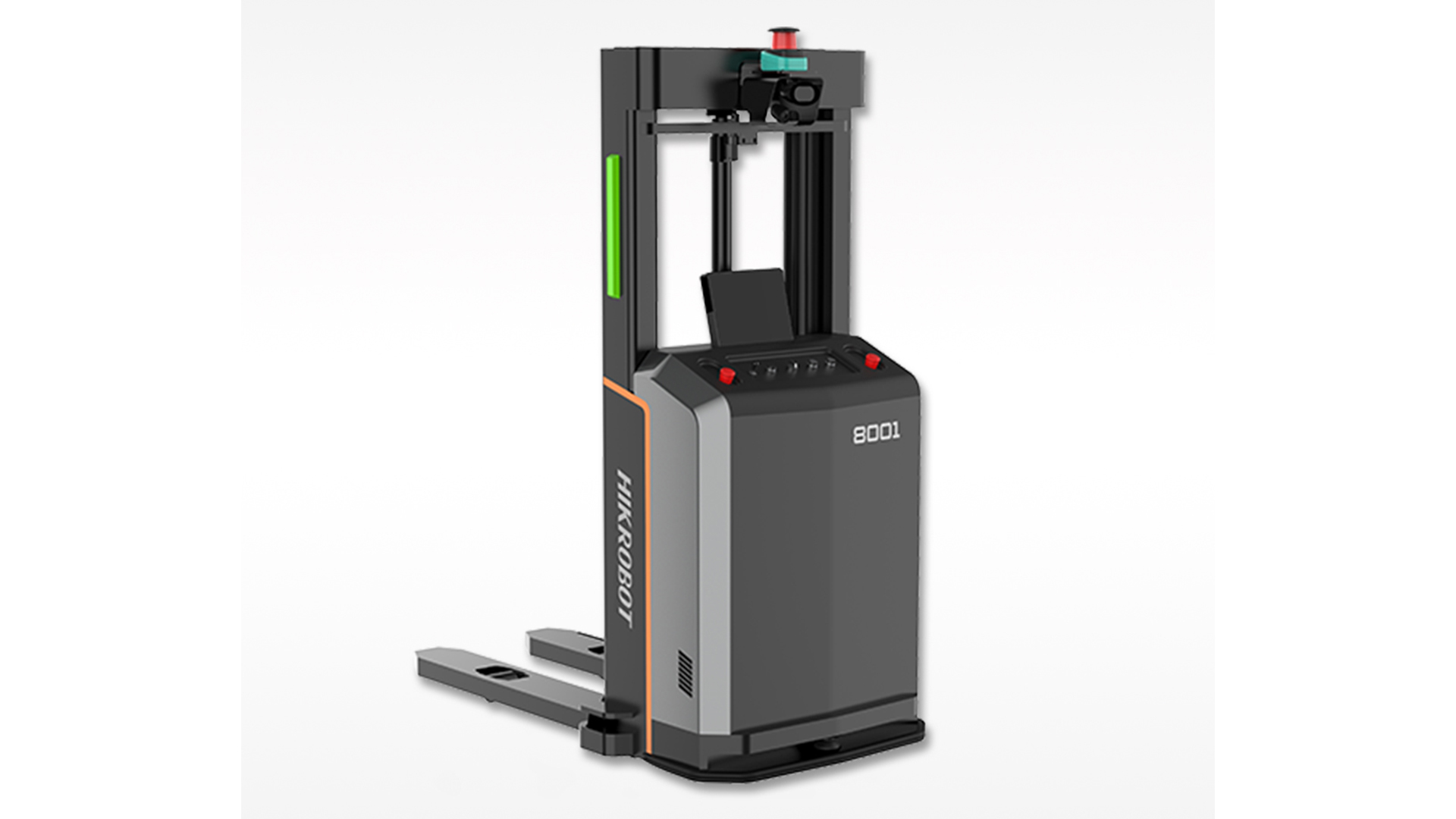

Forklift Mobile Robot
MR-F4-1000-A(HI)

Key Feature
  • Supports customized mast and fork dimension
  • Adopts smooth motion control and max. speed of 1.2 m/s
  • Supports standard pallet carrying with rated load 1000 kg
  • Adopts display screen and indicator to show device status in real time
  • Supports wireless communication and roaming in network covered area
  • Adopts laser slam navigation to achieve accurate positioning and small turning radius
  • Supports battery management system and auto charging in low battery level
  • Multi-safety protection: laser and infrared obstacle avoidance, loading detection, scram button, sound alarm and etc
  • Typical application: warehousing and logistics industries include e-commerce, electronics manufacturing, machinery manufacturing, texture, tobacco ,medicine and etc
Specification
Index Parameter
Basic Parameters
Dimension 1725 mm x 940 mm x 2000 mm
Weight (with battery) 650 kg
Rated load 1000 kg
Load center distance 600 mm
Min. ground clearance 25 mm
Driving wheel dimension Φ 250 mm x 102 mm
Wheelbase 1115 mm
Fork-ground distance 85 mm
Fork dimension 60 mm x 180 mm x 1150 mm
Fork outer width 600 mm
Applicable pallet dimension 1200 mm x 1000 mm
Motion Performance
Rated operating speed 0 mm/s to 1200 mm/s
Operating accuracy ± 10 mm
Repeated positioning accuracy ± 5 mm
Max. climbing gradient 8/16 %
Fork lifting speed 120 mm/s / 160 mm/s
Fork descending speed 210 mm/s / 210 mm/s
Min. turning radius 1310 mm
Min. aisle width 2200 mm
Battery
Rated voltage 48 V
Capacity 70 Ah
Charge cycle 1500 times in full charging/ discharging
Endurance 6 h to 8 h
Charge time ≤ 3 h
Charge board installation 3-electrode at side
Other Parameters
Driving Front-wheel driving and turning
Navigation Laser slam (reflector)
Working noise < 75 dB
Manual operation Supports
Safety performance
Laser obstacle avoidance Supports
Bumper strip/fork infrared Supports
Pallet in-position detection Supports
scram button Supports
Sound and light alarm Supports
