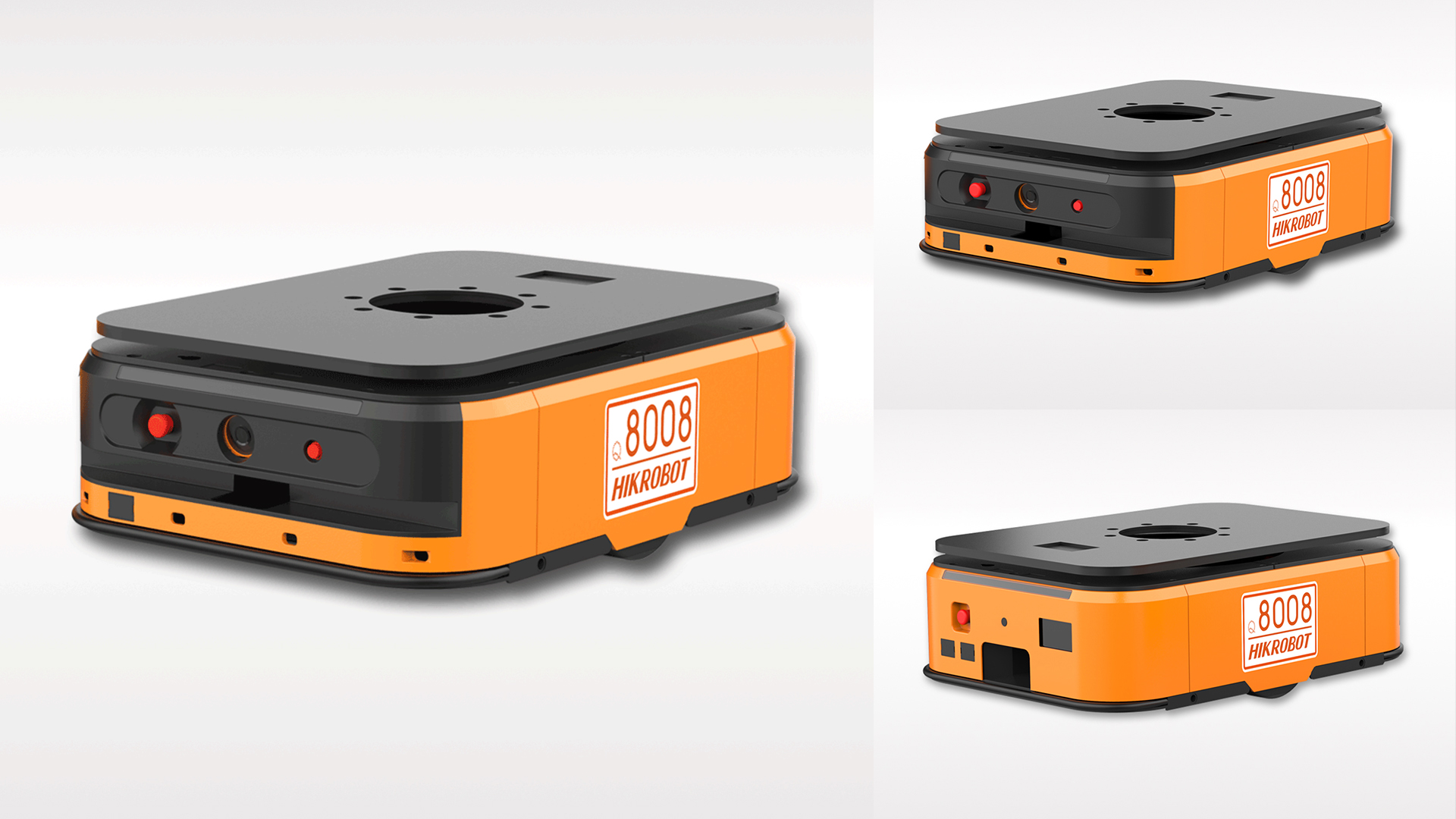

Warehouse Robot
MR-Q3-600CE-B(HI)

Key Feature
  • Uses inertial and visual navigation to achieve accurate positioning
  • Supports smooth motions via dual-wheel differential drive
  • Supports multi-level electrical threshold, auto-charge and back to work on battery dependency
  • Multi-safety protection: contains laser, obstacle avoidance, bumper strip, scram button and distance detection
  • User friendly: supports LCD screen and sound alert
  • Supports up to 600 kg loads
  • Uses sound and dual-color indicator to prompt device status
  • Supports wireless communication and roaming in network covered area
  • Typical Application: warehousing and logistics industries include e-Commerce, electronics manufacturing, tobacco, medicine
Specification
Index Parameter
Basic Parameters
Dimensions 890 mm x 650 mm x 300 mm
Weight 193 kg
Maximum lifting height 60 mm
Rated load 600 kg
Motion Performance
Rated operating speed (Empty) 1650 mm/s
Rated operating speed (Rated load) 1500 mm/s
Rated acceleration (Empty) 1000 mm/s²
Rated acceleration(Rated load) 600 mm/s²
Navigation ±10 mm
Positioning angle accuracy ±1°
Positioning accuracy ±10 mm
Safety performance
Laser obstacle avoidance Front
Ultrasonic obstacle avoidance Rear
Bumper strip Front/Rear
Scram button Front/Rear
Sound alert Provided
Monocular camera Optional
