M403H

Ideal centrepiece of modern education and meeting areas Multipurpose projector

Projector M403H / M403W / M363W / M323W / M403X / M363X / M323X / M283X

DLP Medalion

NaViSet HDMI DLP 3D Ready LED

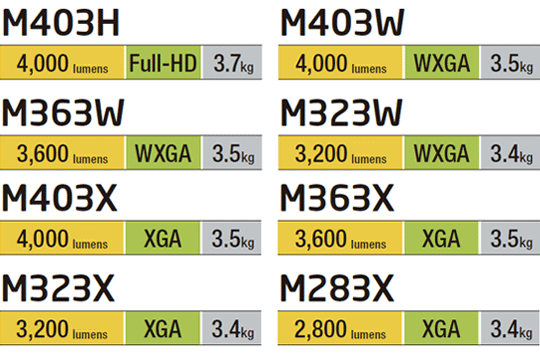

Projector M403H / M403W / M363W / M323W / M403X / M363X / M323X / M283X

Enjoy great performance and flexibility with the M series which includes advanced networking features without compromising on quality.

Functions and Features

TCO eco-certificate *

TCO eco-certificate

*M323W

TCO Certified makes it easy to choose a projector that gives the best possible image quality for your needs and at the same time has minimal environmental impacts.
A new measurement called "TCO Image Size" specifies the maximum projected size for excellent image quality.

For more details about TCO Certified Projectors: http://tcodevelopment.com/

Wide 1.7 x Optical Zoom

The projector has a 1.7 x optical zoom to cover a wide projection distance, so you can set it up in various locations.

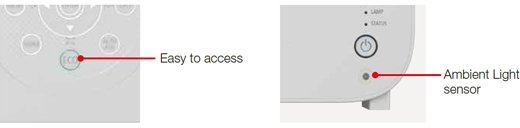

Advanced ECO Modes

You can select a suitable ECO setting from [AUTO ECO], [NORMAL] and [ECO], including [ROOM LIGHT SENSING], [CONSTANT BRIGHTNESS] and [AUTO-DIM], depending on your application. This advanced ECO setting allows you to decrease the power consumption and to prolong the lamp life up to 10,000* hours by controlling the lamp brightness.

Advanced ECO modes

Impressive Image Quality for Various Applications

The latest Texas Instruments DLP™ engine featuring BrilliantColor™ technology offers great 10,000:1 contrast for high brightness images up to 4,000 lumens at Full-HD, WXGA and XGA native resolutions.

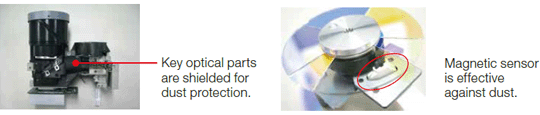

Shielded Optical Structure and Filterless Design

The filter-free design and shielded engine eliminate the hassle and time spent monitoring and/or changing filters.

Shielded Optical Structure and Filterless Design

Get Connected with a Wide Selection of Inputs and Outputs
USB Display Function

USB cable (not supplied)

USB cable (not supplied)

Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect a computer with the projector allows you to send your computer screen image and sound to the projector without needing traditional computer display cables.

USB Viewer

USB Viewer

M series projectors can deliver a solution when you would prefer to leave your laptop computer behind for a presentation. Simply place your file onto a USB drive and plug it into the projector’s USB port. This allows you to display images stored as JPEGs from optional USB storage.

Dual HDMI Inputs

Dual HDMI inputs

HDMI

Among the M series wide selection of inputs is an HDMI w/HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

Microphone Input

Connecting a commercially available dynamic or condenser microphone to the MIC input jack allows you to output your mic input from the built-in speaker.

Variable Audio-out

This function allows you to use the remote control to adjust the volume of self-powered external speakers that are connected to the projector. In network stand-by or sleep mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers.

Advanced Networking Capabilities

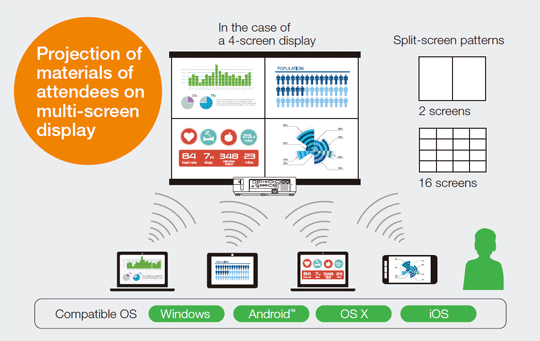

Multi-screen Projection Function*

Wireless Image Utility

The multi-screen projection function allows you to share screens from multiple devices on various split-screen displays. Display information from up to 16 PCs, tablet PCs, smart phones, and other network connected devices on a multi-screen display of up to 16 screens. Easily share screens and information regardless of device or operating system.

  • *Requires an optional wireless LAN module for wireless connection.
    PCs require the installation of the Image Express Utility Lite software on the included CD-ROM. Smart phones and tablets require the download and installation of our Wireless Image Utility software.

Multi-screen Projection Function

NaViSet Administrator 2

NaViSet Administrator 2

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality for a majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.

Virtual Remote Tool

Virtual Remote

Virtual Remote

The utility software Virtual Remote Tool included on the supplied NEC Projector CD-ROM can display the Virtual Remote (or toolbar) on your computer screen. This allows you to turn the projector power on or off and select signals from a computer display cable (VGA), serial cable, or LAN connection.

Other Networking Capabilities
  • Simple Access Point
  • PC Control Utility 4.0 for Windows
  • PC Control Utility 5.0 for Mac
  • CRESTRON ROOMVIEW™ with emergency function
  • AMX BEACON
  • HTTP server
  • PJLink
Other Useful Features and Functions
  • Powerful 20-watt speaker provides volume needed for large rooms
  • Automatic vertical keystone correction technology instantly projects a square image even when the projector is set up at a steep offset angle to the screen
  • Auto power-on via the RGB (15-pin) input connector when a signal is detected from a computer
  • Sleep timer can be set to automatically turn off the projector at set countdown times
  • Power management automatically turns off the projector when an incoming signal is not detected from any of the inputs
  • No-signal guidance for easy cable connections
  • Intuitive plug and play setup and operation
  • PC-based geometric correction and 3D Reform™ function
  • DLP™ 3D Ready DLP 3D Ready
  • Includes a remote with the control ID registration function, which allows operation of multiple projectors with a single remote
  • Wall colour correction for vivid images even without a screen
  • DICOM simulation
  • Security bar / Kensington lock / Control panel lock and password lock
  • Low power consumption (0.32 W in 240 V AC stand-by mode) minimizes energy costs
  • The carbon metre lets you check the amount of CO2 you reduced by using ECO Mode

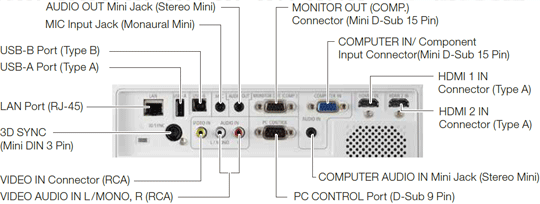

Terminals

Terminals

Specifications

Model Number NP-M403H NP-M403W NP-M363W NP-M323W
Projection System Single DLP® (0.65")
Resolution*1 1,920 × 1,080
(Full HD)		 1,280 × 800
(WXGA)
Lens   Manual focus and zoom, Zoom Ratio= 1.7
F-number / Focal Length F2.4–3.2 /
f = 18.0–30.6 mm		 F2.4–3.1 /
f = 17.09 –29.05 mm
Lamp ECO Mode Off 270 W 250 W 225 W
NORMAL ECO 219 W 189 W 171 W
ECO 162 W 150 W 135 W
Light Output*2 ECO Mode Off 4,000
lumens		 3,600
lumens		 3,200
lumens
NORMAL ECO Approx. 81% Approx. 76%
ECO Approx. 60%
Lamp Life*3 ECO Mode Off 3,500 H
NORMAL ECO 5,000 H 5,500 H
ECO 8,000 H
Contrast Ratio*2
(Full White: Full Black)		 10,000:1 with lamp power control
Image Size (Diagonal) 30 to 300 inches
(16:9)		 30 to 300 inches
(16:10)
Inputs 1 × RGB / Component (D-Sub 15Pin),
2 × HDMI Type A (19Pin, HDMI® Connector) HDCP supported*4,
1 × Video (RCA),
1 × (L / R) RCA Audio,
1 × Stereo Mini Audio
Outputs 1 × RGB (D-Sub 15Pin),
1 × Stereo Mini Audio,
1 × 3D Sync (Mini DIN 3Pin)
PC Control 1 × PC Control Port (D-Sub 9Pin)
Wired LAN Port 1 × RJ-45 (10BASE-T / 100BASE-TX)
Wireless LAN Port (Optional) IEEE 802.11 b/g/n (optional USB wireless LAN unit required)
USB Port 1 × Type A, 1 × Type B
Mic Input 1 × Monaural Mini Audio
Colour Reproduction 10-bit signal processing (1.07 billion colours)
(USB-A, LAN: 16.7 million colours)
Compatible Signals*5 Analogue: VGA/ SVGA / XGA / WXGA / Quad-VGA / SXGA/ SXGA+/ WXGA+ / WXGA++ / UXGA/ WSXGA+ / HD/ Full HD/ WUXGA / Mac 13" / Mac 16" / Mac 19" / Mac 21" / Mac 23"
Component: 480i / 480p / 720p / 1080i (60 Hz), 576i / 576p / 1080i (50 Hz), DVD Progressive (50/ 60 Hz)
Digital: VGA / SVGA / XGA / WXGA / Quad-VGA / SXGA / SXGA+ / WXGA+ / WXGA++ / WSXGA+ / HDTV (1080p) / HDTV (1080i) / HDTV (720p)/ HDTV (480p)
3D: For PC XGA / 1,280 × 720 / WXGA, for Video SDTV (480i), for HDMI-1.4 a 720p (Frame Packing) / 1080p (Frame Packing) / 1080i (Side by Side (Half)) / 720p (Top and Bottom)/ 1080p (Top and Bottom)
Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical: 50 Hz to 120 Hz (HDMI: 50 Hz to 85 Hz)
Keystone Correction Horizontal Manual   Approx. +/− 25 degrees
Vertical Manual /Automatic   Approx. +/− 30 degrees
Built-in Speaker 20 W (monaural)
Quietness ECO Mode Off 36 dB 36 dB 33 dB
NORMAL ECO 30 dB 31 dB 27 dB
ECO 30 dB 31 dB 27 dB
Power Requirement 100 to 240 V AC, 50 / 60 Hz
Input Current 3.9 A to 1.6 A 3.6 A to 1.5 A 3.3 A to 1.4 A
Power Consumption 200–240 V
(Typical)		 ECO Mode Off 320 W 301 W 269 W
NORMAL ECO 264 W 229 W 208 W
ECO 210 W 197 W 179 W
STANDBY (NETWORK) 2.9 W
STANDBY (NORMAL) 0.32 W
Installation Orientation Desktop / Front, Desktop / Rear, Ceiling / Front, Ceiling / Rear
Dimensions (W) × (H) × (D) 368 mm × 108 mm × 291 mm,
368 mm × 98 mm × 286 mm (not including protrusions)
Weight 3.7 kg 3.5 kg 3.4 kg
Environmental Considerations Operational temperatures : 5°C to 40°C, (ECO mode selected automatically at 35°C to 40°C), 20% to 80% humidity (non-condensing)
Storage temperatures: (−10°C to 50°C), 20% to 80% humidity (non-condensing)
Model Number NP-M403X NP-M363X NP-M323X NP-M283X
Projection System Single DLP® (0.55")
Resolution*1 1,024 × 768 (XGA)
Lens   Manual focus and zoom, Zoom Ratio= 1.7
F-number /
Focal Length		 F2.4–3.1 / f = 17.09 –29.05 mm
Lamp ECO Mode Off 270 W 250 W 225 W 200 W
NORMAL ECO 219 W 189 W 171 W 160 W
ECO 162 W 150 W 135 W 120 W
Light Output*2 ECO Mode Off 4,000 lumens 3,600 lumens 3,200 lumens 2,800 lumens
NORMAL ECO Approx. 81% Approx. 76%
ECO Approx. 60%
Lamp Life*3 ECO Mode Off 3,500 H
NORMAL ECO 5,000 H 5,500 H 6,000 H
ECO 8,000 H 10,000 H
Contrast Ratio*2
(Full White: Full Black)		 10,000:1 with lamp power control
Image Size (Diagonal) 30 to 300 inches (4:3)
Inputs 1 × RGB / Component (D-Sub 15Pin),
2 × HDMI Type A (19Pin, HDMI® Connector) HDCP supported*4,
1 × Video (RCA),
1 × (L / R) RCA Audio,
1 × Stereo Mini Audio
Outputs 1 × RGB (D-Sub 15Pin),
1 × Stereo Mini Audio,
1 × 3D Sync (Mini DIN 3Pin)
PC Control 1 × PC Control Port (D-Sub 9Pin)
Wired LAN Port 1 × RJ-45 (10BASE-T / 100BASE-TX)
Wireless LAN Port (Optional) IEEE 802.11 b/g/n (optional USB wireless LAN unit required)
USB Port 1 × Type A, 1 × Type B
Mic Input 1 × Monaural Mini Audio
Colour Reproduction 10-bit signal processing (1.07 billion colours)
(USB-A, LAN: 16.7 million colours)
Compatible Signals*5 Analogue: VGA/ SVGA / XGA / WXGA / Quad-VGA / SXGA/ SXGA+/ WXGA+ / WXGA++ / UXGA/ WSXGA+ / HD/ Full HD/ WUXGA / Mac 13" / Mac 16" / Mac 19" / Mac 21" / Mac 23" Component: 480i / 480p / 720p / 1080i (60 Hz), 576i / 576p / 1080i (50 Hz), DVD Progressive (50/ 60 Hz)
Digital: VGA / SVGA / XGA / WXGA / Quad-VGA / SXGA / SXGA+ / WXGA+ / WXGA++ / WSXGA+ / HDTV (1080p) / HDTV (1080i) / HDTV (720p)/ HDTV (480p)
3D: For PC XGA / 1,280 × 720 / WXGA, for Video SDTV (480i), for HDMI-1.4 a 720p (Frame Packing) / 1080p (Frame Packing) / 1080i (Side by Side (Half)) / 720p (Top and Bottom)/ 1080p (Top and Bottom)
Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical: 50 Hz to 120 Hz (HDMI: 50 Hz to 85 Hz)
Keystone Correction Horizontal Manual   Approx. +/− 25 degrees
Vertical Manual /Automatic   Approx. +/− 30 degrees
Built-in Speaker 20 W (monaural)
Quietness ECO Mode Off 36 dB 36 dB 33 dB 31 dB
NORMAL ECO 30 dB 31 dB 27 dB 27 dB
ECO 30 dB 31 dB 27 dB 27 dB
Power Requirement 100 to 240 V AC, 50 / 60 Hz
Input Current 3.9 A to 1.6 A 3.6 A to 1.5 A 3.3 A to 1.4 A 3.0 A to 1.2 A
Power Consumption 200–240 V
(Typical)		 ECO Mode Off 320 W 301 W 269 W 242 W
NORMAL ECO 264 W 229 W 208 W 197 W
ECO 210 W 297 W 179 W 162 W
STANDBY (NETWORK) 2.9 W
STANDBY (NORMAL) 0.32 W
Installation Orientation Desktop / Front, Desktop / Rear, Ceiling / Front, Ceiling / Rear
Dimensions (W) × (H) × (D) 368 mm × 108 mm × 291 mm,
368 mm × 98 mm × 286 mm (not including protrusions)
Weight 3.5 kg 3.4 kg
Environmental Considerations Operational temperatures : 5°C to 40°C, (ECO mode selected automatically at 35°C to 40°C), 20% to 80% humidity (non-condensing)
Storage temperatures: (−10°C to 50°C), 20% to 80% humidity (non-condensing)
  • *1:Effective pixels are more than 99.99%.
  • *2:Compliant with ISO 21118-2012.
  • *3:The average time span for the brightness of the lamp to be reduced by half; does not refer to the warranty period for the lamp.
  • *4:HDMI® (Deep Colour, Lip Sync, 3D) with HDCP.
  • *5:An image with higher or lower resolution than the projector’s native resolution will be displayed with Advanced AccuBlend.

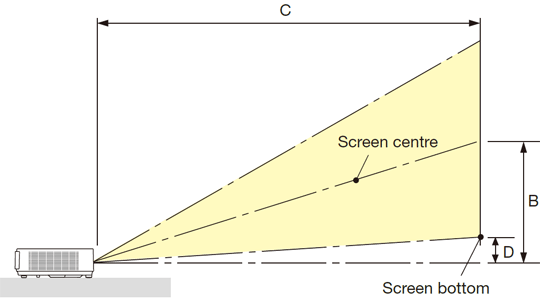

Throw distance and screen size

Throw distance and screen size

NOTE: The values in the tables are design values and may vary.

M403H
Screen size B C D
Diagonal Width Height Wide Tele
inch mm mm mm mm mm mm mm
30 762 664 374 246 744 1,324 60
40 1,016 886 498 329 1,017 1,796 80
60 1,524 1,328 747 493 1,562 2,742 119
80 2,032 1,771 996 657 2,107 3,687 159
90 2,286 1,992 1,121 739 2,379 4,159 179
100 2,540 2,214 1,245 822 2,651 4,632 199
120 3,048 2,657 1,494 986 3,196 5,577 239
150 3,810 3,321 1,868 1,232 4,014 6,994 298
200 5,080 4,428 2,491 1,643 5,376 9,356 398
300 7,620 6,641 3,736 2,464 8,101 14,082 597
M403W / M363W / M323W
Screen size B C D
Diagonal Width Height Wide Tele
inch mm mm mm mm mm mm mm
30 762 646 404 252 749 1,278 50
40 1,016 862 538 336 1,015 1,731 67
60 1,524 1,292 808 504 1,547 2,636 100
80 2,032 1,723 1,077 672 2,080 3,541 133
90 2,286 1,939 1,212 756 2,346 3,995 151
100 2,540 2,154 1,346 840 2,611 4,447 167
120 3,048 2,585 1,615 1,008 3,144 5,353 200
150 3,810 3,231 2,019 1,260 3,942 6,708 250
200 5,080 4,308 2,692 1,680 5,273 8,971 333
300 7,620 6,462 4,039 2,520 7,936 13,497 500
M403X / M363X / M323X / M283X
Screen size B C D
Diagonal Width Height Wide Tele
inch mm mm mm mm mm mm mm
30 762 610 457 297 892 1,523 69
40 1,016 813 610 396 1,206 2,056 91
60 1,524 1,219 914 594 1,833 3,123 137
80 2,032 1,626 1,219 792 2,461 4,192 183
90 2,286 1,829 1,372 892 2,775 4,725 206
100 2,540 2,032 1,524 990 3,088 5,258 228
120 3,048 2,438 1,829 1,188 3,716 6,324 274
150 3,810 3,048 2,286 1,486 4,658 7,925 343
200 5,080 4,064 3,048 1,981 6,228 10,594 457
300 7,620 6,096 4,572 2,971 9,367 15,931 685

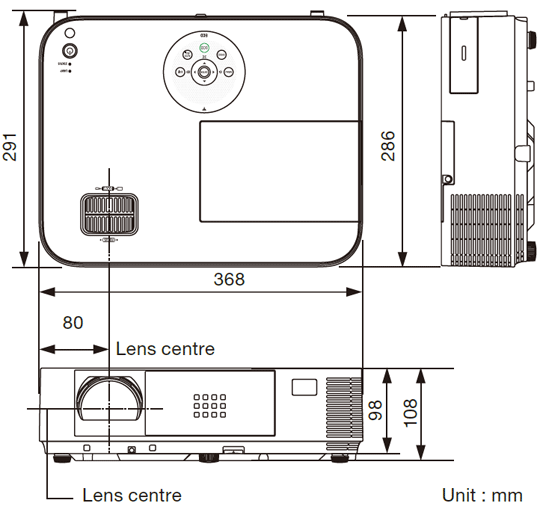

Cabinet dimensions

Dimensions

Accessories

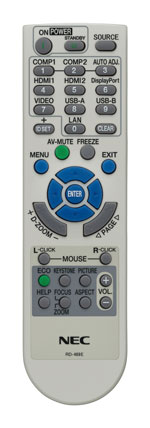

Remote control (included accessory)

Remote Control

Options

Replacement lamp

Replacement lamp NP27LP/NP28LP/NP29LP/NP30LP

NP27LP (M283X)
NP28LP (M323W / M323X)
NP29LP (M363W / M363X)
NP30LP (M403H / M403W / M403X)

Wireless LAN unit*

Wireless LAN unit NP05LM1-5*

NP05LM1-5*

  • *The last digit may vary depending on the country of destination.

Cable cover

Ceiling mount kit NP12CM

NP05CV

Ceiling mount kit

Cable cover NP05CV

NP12CM

  • *Do not stare into the lens during use.
  • *The projector can be unplugged immediately after it is turned off.
    Parts of the projector become heated during operation.
    Use caution when picking up the projector immediately after it has been operating.

For more information

Download Brochure
back
