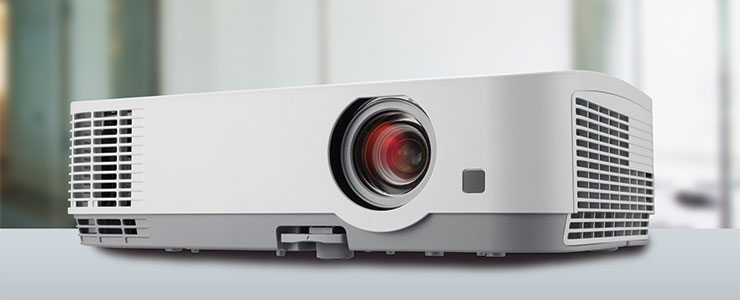

ME401W / ME361X / ME361W

A greater projector - ease of use, ease of setting and ease of connection Multipurpose Projector

Projector ME401W / ME361W / ME331W / ME301W / <br />ME401X / ME361X / ME331X / ME301X

NaViSet MultiPresenter HDMI

A convenient LCD projector easily configured by convenient utility software.
Also includes several eco features, such as longer lamp life, low fan noise,energy saving technology, and a carbon meter.

NP-ME401W 4,000 lumens WXGA 2.9 kg
NP-ME361W 3,600 lumens WXGA 2.9 kg
NP-ME331W 3,300 lumens WXGA 2.9 kg
NP-ME301W 3,000 lumens WXGA 2.9 kg
NP-ME401X 4,000 lumens XGA 2.9 kg
NP-ME361X 3,600 lumens XGA 2.9 kg
NP-ME331X 3,300 lumens XGA 2.9 kg
NP-ME301X 3,000 lumens XGA 2.9 kg

Functions and Features

Settings for Greater Ease-of-Use
Easy Connection

Easily connect your projector to PCs, tablets, smart phones or other smart devices equipped with MultiPresenter application software by inputting a PIN code.

Interfaces for Various Functions

The projector is equipped with 2 HDMI inputs for projecting digital images in high quality, as well as a wired/wireless (option*) LAN port. * Make sure to choose the appropriate wireless LAN unit for the usage country or area according to the following list.

NP05LM2 Thailand, Hong Kong, Vietnam, Philippines
NP05LM4 Australia, New Zealand, Singapore, South Korea, Malaysia, India, Sri Lanka
NP05LM5 Taiwan, Indonesia, Pakistan

You can project computer images via USB cable instead of VGA cable. In this case, you can control your PC mouse via the projector’s remote control.

The projector also has a viewer function that lets you project data (JPEG) stored on USB memory, so you can give presentations without a computer.

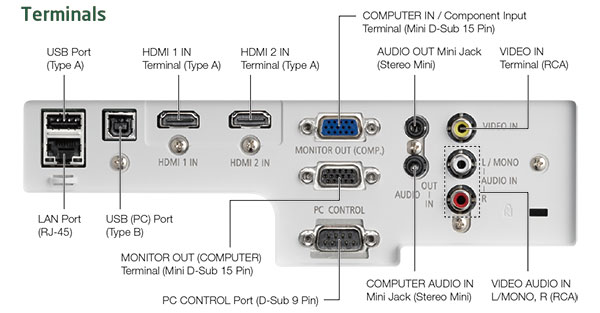

Terminals

Easy Configuration of Other Smart Devices by Convenient Utility Software (NaViSet Administrator 2, Virtual Remote Tool, etc.)

NaViSet Administrator 2

Virtual Remote lets you use your computer to switch the power of the projector
on and off and change the input signal.

Various Keystone Corrections

Auto Vertical Keystone Correction
HV Keystone (+/- 30° manual horizontal / +/- 30° manual vertical) / Corner Stone / Pincushion Correction

1.7x Zoom

The projector has a 1.7× zoom to cover a wide projection distance, so you can setup in various locations.

Enhanced Functions for Reduced Power Consumption and TCO
A Complete Lineup of Eco Functions

The projector has an Auto Eco Mode, which automatically adjusts the brightness to suit the projected image, and an Eco Mode, which is convenient when it is too bright for small screen projection. There are Eco buttons on the projector and a remote control so you can more easily enable Eco Mode.

Improved Lamp Lifetime

The time between lamp exchanges has been improved. For Eco Mode Off and Eco Mode, the times are 4,000 and 9,000 hours, respectively.

  • *The low power design cuts energy consumption in standby to 0.23 W (100 – 130 V AC) / 0.45 W (200 – 240 V AC), which helps with TCO reduction.
Carbon Meter

This lets you check the amount of CO₂ you reduced by using Eco Mode.

Advanced Functions

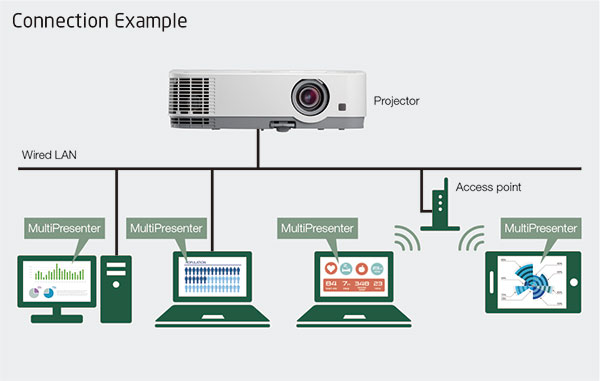

MultiPresenter

MultiPresenter

MultiPresenter is application software that lets you display your device’s screen (PC, tablet, smart phone, etc.) on the receiver projectors via wired or wireless LAN. MultiPresenter is free and available on Windows, Mac, iOS, and Android. MultiPresenter can send images from your various devices, which enables you to display real-time images with the internal camera or web pages on the smart devices in combination with a file sharing application.

Desktop Version (Win/Mac)

Computer audio and video data (audio can be transmitted only when using Windows) can be transmitted via a wireless or wired LAN.

  • Easy Connection
    Input a 4-digit number (PIN code) for a network connection via wireless LAN.
  • Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projectors.
  • Projector control

Mobile Version (Android/iOS)

You can transmit files, photos, camera images, files of web pages, and other information stored on Android or iOS devices via a wireless LAN.

  • Easy Connection
    Input a 4-digit number (PIN code) for a network connection via wireless LAN.
  • Multiple devices (maximum of 16 screens) can display at the same time and simultaneously display onto multiple receiving projectors.
  • Projector control

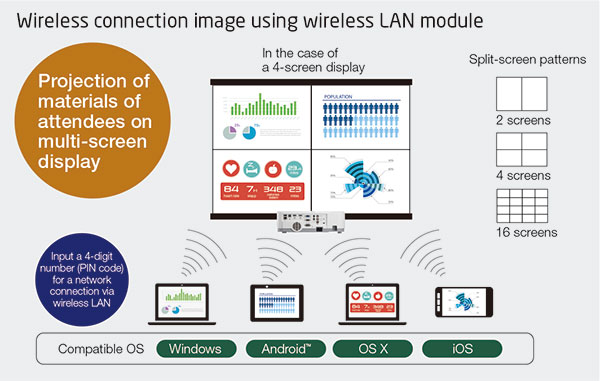

Wireless connection image using wirelsee LAN module

Other Functions
  • Built-in speaker with a powerful 20W output
  • High contrast ratio of 12,000:1 (XGA) / 6,000:1 (WXGA)
  • Designed for a quiet noise level of 29 dB (in Eco Mode) to prevent annoying operation noises during projection.
  • Quick Power Off and Direct Power Off allow speedy clean-up and transfer after use
  • Auto Power On automatically switches on the power when the power cord is connected or a signal is input via Comp.1
  • Wall Colour Correction for vivid images even without a screen.
  • Includes a remote with a control ID registration function, which allows operation of multiple projectors with a single remote.
  • Simple “DICOM SIM” mode allows for the easy of medical images.
    * Cannot be used for diagnoses of display images.
  • Control capability
    - Crestron RoomView® with emergency function
    - HTTP server
    - PJLink

Specifications

ME401W / ME361W / ME331W / ME301W
Model NP-ME401W NP-ME361W NP-ME331W NP-ME301W
Image Projection Technology 3LCD Technology　　　
Native Resolution*1 1,280 × 800 (WXGA)
Aspect Ratio 16:9
Contrast Ratio 6,000:1 with IRIS
Brightness*2 *3 4,000 High Bright /
3,000 Normal /
2,400 Eco
Lumens (Approx.)		 3,600 High Bright /
2,700 Normal /
2,160 Eco
Lumens (Approx.)		 3,300 High Bright /
2,475 Normal /
1,980 Eco
Lumens (Approx.)		 3,000 High Bright /
2,400 Normal /
1,800 Eco
Lumens (Approx.)
Lamp 240 W AC (140 W
AC Eco Mode)		 235 W AC (140 W AC Eco Mode) 214 W AC (140 W
AC Eco Mode)
Lamp Life*4 9,000 hrs Eco / 5,000 hrs Normal / 4,000 hrs High Bright Mode
Lens F=1.7 – 2.1, f=17.5 – 29 mm
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Angle 10.7 to 11.4 deg (Wide)   6.5 to 6.8 deg (Tele)
Projection Factor 1.3 – 2.2 : 1 (Throw ratio: 1.3, Zoom ratio: 2.2)
Projection Distance 0.7 m – 14.6 m
Screen Size (diagonal) Maximum: 300 inch; Minimum: 25 inch
Zoom Manual
Focus Adjustment Manual
Supported Resolutions*5 1,920 × 1,200 (WUXGA); 1,920 × 1,080 (HDTV 1,080p/i); 1,680 × 1,050 (WSXGA+); 1,600 × 1,200 (UXGA); 1,600 × 9,00 (WXGA++); 1,440 × 900 (WXGA+); 1,400 × 1050 (SXGA+);
1,280 × 1,024 (MAC 23"); 1,280 × 1,024 (SXGA); 1,280 × 800 (WXGA); 1,280 × 768 (XGA); 1,024 × 768 (MAC 19"); 832 × 624 (MAC 16"); 800 × 600 (SVGA); 720 × 576 (SDTV 480p/i);
720 × 480 (WXGA); 1,280 × 720 (HDTV 720p); 1,152 × 870 (MAC 21"); 1,024 × 768(480p); 720 × 480 (SDTV 480i); 640 × 480 (VGA); 640 × 480 (MAC 13")
Frequency Horizontal: 15 – 100 kHz (RGB: 24 kHz – 100 kHz); Vertical: 50 – 120 Hz
Connectivity RGB (analogue) Input: 1× Mini D-sub 15-pin, compatible component (YCbCr) / Output: 1× Mini D-sub 15-pin
HDMI Input: 2 × HDMI
Video Input: 1 × RCA
Audio Input: 1 × Stereo Mini Jack / Output: 1 × Stereo Mini Jack
Control Input: 1 × D-sub 9-pin (RS-232C)
LAN 1 × RJ45; Optional WLAN
USB 1 × Type A (USB 2.0 high speed); 1 × Type B
Video Signals NTSC / NTSC4.43 / PAL / PAL-N / PAL-M / PAL-60 / SECAM
Remote Control Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select
Electrical Power Supply 100 – 240 V AC; 50 – 60 Hz
Power Consumption 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
316 W (High Bright)		 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
309 W (High Bright)		 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
286 W (High Bright)
Mechanical Dimensions (W × H × D) 339 mm × 102 mm × 259 mm (not include protrusions)
Weight 2.9 kg
Quietness 29 dB / 37 dB (Eco / Normal) 29 dB / 36 dB (Eco / Normal) 29 dB / 35 dB (Eco / Normal)
Environmental Conditions Operating Temperature 5 °C to 40 °C
Operating Humidity 20 % to 80 %
Storage Temperature –10 °C to 50 °C
Storage Humidity 20 % to 80 %
Speaker Speaker 1 × 20 W (mono)
Additional Features Special Characteristics Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM Simulation;  Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Keystone Correction (H=±30°, V=±30°); Lens Cap; Magnify; NaViSet Administrator 2;
Off-Timer; Optional User Logo; Optional WLAN; OSD with 30 languages; Password Security System; Quick On/Off; RS-232Control; Security Bar; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Shipping Content IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
Optional Accessories DisplayNote; Lamp (NP43LP/NP16LP); MultiPresenter Stick; Wireless LAN module NP05LM*6
  • *1:Effective pixels are more than 99.99%.
  • *2: This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
  • *3:Compliance with ISO21118-2012
  • *4:The average time span for the brightness of the lamp to be reduced by half; does not refer to the warranty period for the lamp.
  • 5:An image with higher or lower resolution than the projector’s native resolution will be displayed with Advanced AccuBlend.
  • *6:The last digit may vary depending on the country of destination.
    These specifications and the product’s design are subject to change without notice.
ME401X / ME361X / ME331X / ME301X
Model NP-ME401X NP-ME361X NP-ME331X NP-ME301X
Image Projection Technology 3LCD Technology
Native Resolution*1 1,024 × 768 (XGA)
Aspect Ratio 4:3
Contrast Ratio 12,000:1 with IRIS
Brightness*2 *3 4,000 High Bright /
3,000 Normal /
2,400 Eco
Lumens (Approx.)		 3,600 High Bright /
2,700 Normal /
2,160 Eco
Lumens (Approx.)		 3,300 High Bright /
2,475 Normal /
1,980 Eco
Lumens (Approx.)		 3,000 High Bright /
2,400 Normal /
1,800 Eco
Lumens (Approx.)
Lamp 240 W AC (140 W
AC Eco Mode)		 235 W AC (140 W AC Eco Mode) 214 W AC (140 W
AC Eco Mode)
Lamp Life*4 9,000 hrs Eco / 5,000 hrs Normal / 4,000 hrs High Bright Mode
Lens F=1.7 – 2.1, f=17.5 – 29 mm
Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical
Projection Angle 10.7 to 11.4 deg (Wide)   6.5 to 6.8 deg (Tele)
Projection Factor 1.3 – 2.2 : 1 (Throw ratio: 1.3, Zoom ratio: 2.2)
Projection Distance 0.6 m – 13.8 m
Screen Size (diagonal) Maximum: 300 inch; Minimum: 25 inch
Zoom Manual
Focus Adjustment Manual
Supported Resolutions*5 1,920 × 1,200 (WUXGA); 1,920 × 1,080 (HDTV 1,080p/i); 1,680 × 1,050 (WSXGA+); 1,600 × 1,200 (UXGA); 1,600 × 9,00 (WXGA++); 1,440 × 900 (WXGA+); 1,400 × 1050 (SXGA+);
1,280 × 1,024 (MAC 23"); 1,280 × 1,024 (SXGA); 1,280 × 800 (WXGA); 1,280 × 768 (XGA); 1,024 × 768 (MAC 19"); 832 × 624 (MAC 16"); 800 × 600 (SVGA); 720 × 576 (SDTV 480p/i);
720 × 480 (WXGA); 1,280 × 720 (HDTV 720p); 1,152 × 870 (MAC 21"); 1,024 × 768(480p); 720 × 480 (SDTV 480i); 640 × 480 (VGA); 640 × 480 (MAC 13")
Frequency Horizontal: 15 – 100 kHz (RGB: 24 kHz – 100 kHz); Vertical: 50 – 120 Hz
Connectivity RGB (analogue) Input: 1× Mini D-sub 15-pin, compatible component (YCbCr) / Output: 1× Mini D-sub 15-pin
HDMI Input: 2 × HDMI
Video Input: 1 × RCA
Audio Input: 1 × Stereo Mini Jack / Output: 1 × Stereo Mini Jack
Control Input: 1 × D-sub 9-pin (RS-232C)
LAN 1 × RJ45; Optional WLAN
USB 1 × Type A (USB 2.0 high speed); 1 × Type B
Video Signals NTSC / NTSC4.43 / PAL / PAL-N / PAL-M / PAL-60 / SECAM
Remote Control Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Optional Presentation and Mouse Control; Picture Adjust; Picture Mode; Source Select
Electrical Power Supply 100 – 240 V AC; 50 – 60 Hz
Power Consumption 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
316 W (High Bright)		 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
309 W (High Bright)		 241 W (Normal) /
201 W (Eco) /
2.3 W (Network Stand-by) /
0.45 W (Stand-by);
286 W (High Bright)
Mechanical Dimensions (W × H × D) 339 mm × 102 mm × 259 mm (not include protrusions)
Weight 2.9 kg
Quietness 29 dB / 37 dB (Eco / Normal) 29 dB / 36 dB (Eco / Normal) 29 dB / 35 dB (Eco / Normal)
Environmental Conditions Operating Temperature 5 °C to 40 °C
Operating Humidity 20 % to 80 %
Storage Temperature –10 °C to 50 °C
Storage Humidity 20 % to 80 %
Speaker Speaker 1 × 20 W (mono)
Additional Features Special Characteristics Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM Simulation;  Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Keystone Correction (H=±30°, V=±30°); Lens Cap; Magnify; NaViSet Administrator 2;
Off-Timer; Optional User Logo; Optional WLAN; OSD with 30 languages; Password Security System; Quick On/Off; RS-232Control; Security Bar; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Shipping Content IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
Optional Accessories DisplayNote; Lamp (NP43LP/NP16LP); MultiPresenter Stick; Wireless LAN module NP05LM*6
  • *1: Effective pixels are more than 99.99%.
  • *2:This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
  • *3: Compliance with ISO21118-2012
  • *4: The average time span for the brightness of the lamp to be reduced by half; does not refer to the warranty period for the lamp.
  • *5:An image with higher or lower resolution than the projector’s native resolution will be displayed with Advanced AccuBlend.
  • *6:The last digit may vary depending on the country of destination.
    These specifications and the product’s design are subject to change without notice.

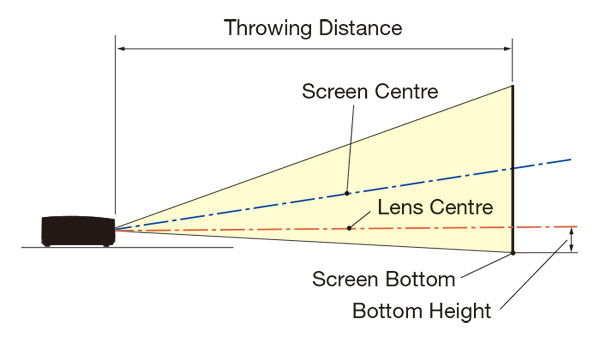

Throw distance and screen size

Throw Distance and Screen Size

ME401W / ME361W / ME331W / ME301W
Screen Size
(inch)		 Throwing Distance (m) Bottom Height (cm)
Wide Tele
25" 0.69 1.17 2.9
30" 0.83 1.42 3.5
40" 1.13 1.90 4.7
60" 1.71 2.88 7.1
80" 2.30 3.85 9.4
100" 2.88 4.82 11.8
120" 3.47 5.80 14.1
150" 4.35 7.26 17.7
180" 5.23 8.72 21.2
200" 5.81 9.96 23.6
240" 6.99 11.64 28.3
300" 8.74 14.56 35.3
ME401X / ME361X / ME331X / ME301X
Screen Size
(inch)		 Throwing Distance (m) Bottom Height (cm)
Wide Tele
30" 0.79 1.34 7.1
40" 1.07 1.80 9.5
60" 1.62 2.72 14.3
80" 2.18 3.64 19.1
100" 2.73 4.56 23.8
120" 3.29 5.49 28.6
150" 4.12 6.87 35.7
180" 4.96 8.25 42.9
200" 5.51 9.17 47.6
240" 6.62 11.02 57.2
300" 8.29 13.78 71.4

NOTE: The values in the tables are design values and may vary.

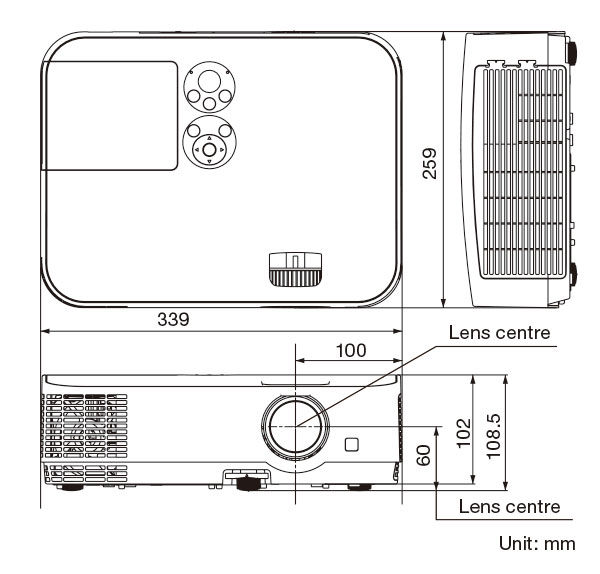

Cabinet dimensions

Cabinet dimensions

Accessories

Remote control

Remote Control

(included accessory)

Options

Replacement lamp NP43LP
* NP16LP is also usable.

Wireless LAN module NP05LM2,4,5*
* The last digit may vary depending on the country of destination.

  • *Do not stare into the lens during use.
  • *The projector can be unplugged immediately after it is turned off.
    Parts of the projector become heated during operation.
    Use caution when picking up the projector immediately after it has been operating.

For more information

Download Brochure
back
