Functions and Features

No More Lamp Replacements

Up to 20,000 hours* of maintenance-free operation possible due to the laser light source.

• *Actual hours may vary depending on usage conditions.

Impressive Image Quality for Various Applications

The latest Texas Instruments DLP™ engine featuring BrilliantColor™ technology offers great 15,000:1 contrast for high brightness images up to 5,000 lumens at Full-HD and WXGA native resolutions.

Wide 1.7 × Optical Zoom and H/V Lens Shift

The wide 1.7 × optical zoom, horizontal / vertical lens shift and keystone correction allow flexible setting in various locations.

A Dustproof Design Supported by NEC’s Closed-loop Cooling System

Tilt-free and Portrait Installation Support

Compatible with Diverse Signal Sources

Built-in HDBaseT Support

Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What is more, control signals are contained in the same cable.

USB Viewer

This series projector can deliver a solution when you would prefer to leave your laptop computer behind for a presentation. Simply place your file onto a USB drive and plug it into the projector’s USB port. This allows you to display images stored as JPEGs from optional USB storage.

Dual HDMI Inputs

Among the P502HL-2 series wide selection of inputs is HDMI with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

Advanced Networking Capabilities

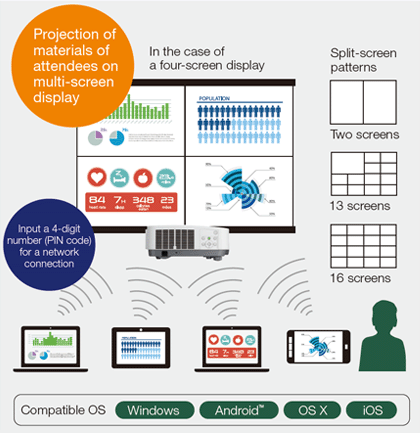

Multi-screen Projection Function^*1

The multi-screen projection function allows for the sharing of screens of multiple devices on various split-screen displays via a wireless or wired LAN. Display information from up to 50^*2 PCs, tablet PCs, smart phones, and other network connected devices on a multi-screen display of up to 16 screens. Easily share screens and information regardless of device or operating system.

• *1:Requires the optional wireless LAN module for wireless connection.
  PCs, Smart phones and tablets require the download and installation of our MultiPresenter software.
• *2:The connection of 50 devices to the network requires construction of a wireless LAN environment, such as the use of a separate access point.

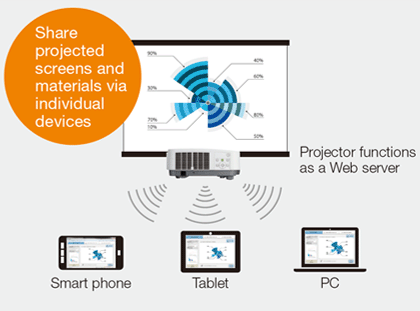

Web sharing function

Without the need for exclusive software, it enables you to share images and files between the projector and computers in the same network by accessing the web server of the projector utilizing the web browser.

NaViSet Administrator 2

Virtual Remote Tool

Other Networking Capabilities

• Simple Access Point
• PC Control Utility 4.0 for Windows
• PC Control Utility 5.0 for Mac
• Miracast™
• CRESTRON ROOMVIEW™ with emergency function
• AMX BEACON
• HTTP server
• PJLink

Other Useful Features and Functions

• Powerful 20-watt speaker provides the volume levels needed for large rooms
• Virtually instant start up with the laser light source
• Auto power-on via the HDMI 1, HDMI 2 and RGB (15-pin) input connectors when a signal is detected from a computer
• Sleep timer can be set to automatically turn off the projector at set countdown times
• Power management automatically turns off the projector when an incoming signal is not detected from any of the inputs
• No-signal guidance for easy cable connections
• Intuitive plug and play setup and operation
• PC-based geometric correction and 3D Reform™ function
• SmartSource™ 3D Ready
• Includes a remote with the control ID registration function, which allows operation of multiple projectors with a single remote
• Wall colour correction for vivid images even without a screen
• DICOM simulation
• Security bar / Kensington lock / Control panel lock and password lock
• Low power consumption (0.36 W in 240 V AC stand-by mode) minimizes energy costs
• The carbon metre lets you check the amount of CO2 you reduced by using ECO Mode

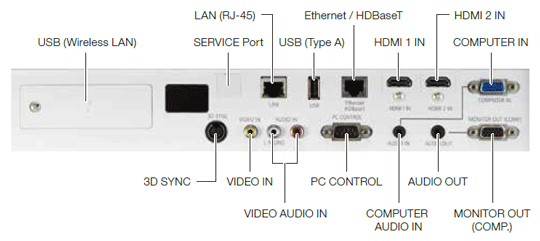

Terminals

Specifications

Model Number			NP-P502HL-2	NP-P502WL-2
Method			Reflection by single DMD chip
Specifications of main parts
	Main panel	Size	0.65" (aspect ratio: 16:9)	0.65" (aspect ratio: 16:10)
		Pixels*1	(1,920 dots × 1,080 lines)	1,024,000 (1,280 dots × 800 lines)
	Projection lenses	Zoom	Manual (zoom ratio 1.7)
		Focus	Manual
		Lens shifting	Manual (H: ±25%, V: +62%, –0%)	Manual (H: ±28%, V: +59%, –0%)
	Light source		Blue laser diode
	Light source (laser diode) Life*2		20,000 hours
	Optical unit		C/W type (DLP), colour separation by colour wheel; time-multiplexing colour wheel method
Light output*3*4		ECO mode off	5,000 lm
		ECO 1 mode	Approx. 80%
		ECO 2 mode	Approx. 50%
Contrast ratio*4 (all white / all black)			20,000:1 with dynamic contrast
Screen size			30 to 300 inches
Colour reproducibility			10-bit signal processing (approx. 1.07 billion colours)
Quietness (ECO2 / ECO1 / ECO mode off)			31 dB / 33 dB / 39 dB
Synchronization rate		Horizontal	15 to 100 kHz (24 kHz or greater for RGB inputs)
		Vertical	50 to 120 Hz
Max. display resolution (horizontal × vertical)			Analogue: 1,920 × 1,200 (with Advanced AccuBlend) / Digital: 1,920 × 1,080 (with Advanced AccuBlend)
Keystone correction		Horizontal	Manual (approx. ±25 degrees)
		Vertical	Manual (approx. ±30 degrees)
Input / output connectors
	Computer input		Mini D-Sub 15-pin × 1
		Audio input	Stereo mini jack × 1
	HDMI® input		TypeA 19-pin HDMI® connector (HDCP, audio) × 2
	HDBaseT™		RJ45 (Ethernet 100Base-TX / HDBaseT, audio) × 1
	Video input		RCA × 1
		Audio input	RCA × 2 (L / R)
	Computer output		Mini D-Sub 15-pin × 1
	Audio output		Stereo mini jack × 1
	PC control		D-Sub 9-pin × 1
	USB port		Type A for USB memory × 1, Type B for service × 1
	Ethernet port		RJ-45 (10 / 100Base-TX) × 1, W-LAN (USB type A) × 1 for wireless LAN unit
	3D SYNC		Synchronized signal output for 3D use × 1
Built-in speaker			20 W monaural × 1
Usage environment			Operating temperature: 5 to 40°C*5, operating humidity: 20 to 80% (with no condensation) Storage temperature: –10 to 50°C, storage humidity: 20 to 80% (with no condensation) Operating altitude: 0 to 2,600 m (1700 to 2,600 m: Set [FAN MODE] to [HIGH])
Power supply			100 – 240 V AC, 50/60 Hz
Power consumption	ECO mode off		464 W (100 – 130 V ) / 442 W (200 – 240 V )
	ECO1		362 W (100 – 130 V ) / 347 W (200 – 240 V )
	ECO2		236 W (100 – 130 V ) / 231 W (200 – 240 V )
	STANDBY (NORMAL)		Less than 0.36 W
	STANDBY (NETWORK)		Less than 2.3 W
Rated input current			5.7 – 2.3 A
Dimensions (W × H × D)			469 × 137 × 365 mm (net dimensions, not including protruding parts)
Weight			8.7 kg (net weight)

• *1:Effective pixels are more than 99.99%.
• *2:Time at which the laser light source is at half brightness; not a guarantee time.
• *3:Light output value when the [PRESET] mode is set to [HIGH-BRIGHT].
• *4:Compliant with ISO21118-2005.
• *5:When surrounding temperature is 35 – 40°C, [PRESET] becomes [ECO] mode automatically.

These specifications and the product’s design are subject to change without notice.

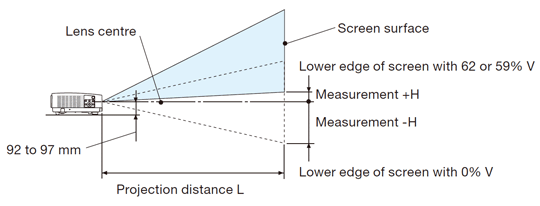

Throw distance and screen size

P502HL-2 Full HD (Aspect ratio 16:9)

Screen size	Screen width (cm)	Screen height (cm)	Throw distance L (m)		Height H (cm)
			Wide	Tele	0% V  – 62% V
30"	66.4	37.4	0.79	1.39	−18.7  –  4.3
40"	88.6	49.8	1.07	1.86	−24.9  –  5.8
50"	110.7	62.3	1.34	2.34	−31.1  –  7.2
60"	132.8	74.7	1.62	2.81	−37.4  –  8.7
80"	177.1	99.6	2.17	3.76	−49.8  –  11.6
100"	221.4	124.5	2.72	4.71	−62.3  –  14.5
120"	265.7	149.4	3.28	5.66	−74.7  –  17.4
150"	332.1	186.8	4.11	7.08	−93.4  –  21.7
200"	442.8	249.1	5.49	9.45	−124.5  –  28.9
250"	553.4	311.3	6.87	11.82	−155.7  –  36.2
300"	664.1	373.6	8.25	14.19	−186.8  –  43.4

P502WL-2 WXGA (Aspe ct ratio 16:10)

Screen size	Screen width (cm)	Screen height (cm)	Throw distance L (m)		Height H (cm)
			Wide	Tele	0% V  – 59% V
30"	64.6	40.4	0.81	1.42	−20.2  –  3.4
40"	86.2	53.8	1.09	1.9	−26.9  –  4.6
50"	107.7	67.3	1.37	2.39	−33.7  –  5.7
60"	129.2	80.8	1.66	2.87	−40.4  –  6.9
80"	172.3	107.7	2.22	3.84	−53.8  –  9.2
100"	215.4	134.6	2.78	4.81	−67.3  –  11.5
120"	258.5	161.5	3.35	5.78	−80.8  –  13.8
150"	323.1	201.9	4.19	7.23	−101.0  –  17.2
200"	430.8	269.2	5.6	9.65	−134.6  –  23
250"	538.5	336.5	7.01	12.08	−168.3  –  28.7
300"	646.2	403.9	8.43	14.5	−201.9  –  34.5

• *Stated projection distances are standard values.
• *The values in the tables are design values and may vary.

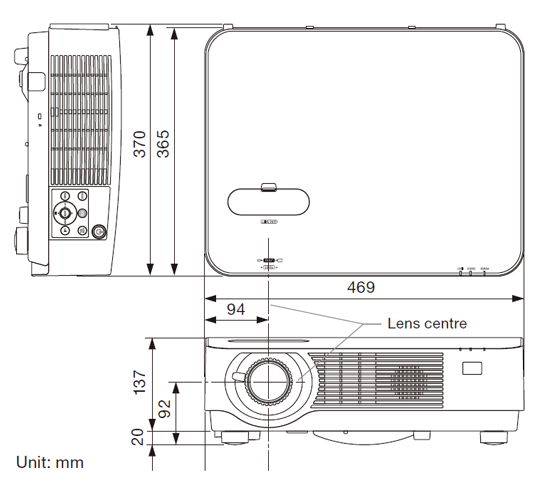

Cabinet dimensions

Accessories
