Functions and Features

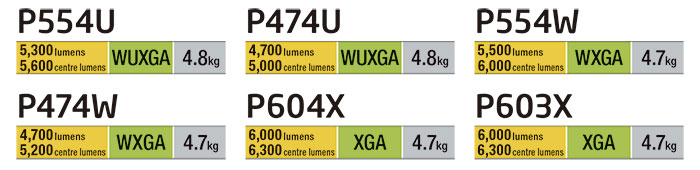

High Resolution up to WUXGA*

* P554U/P474U

High resolution display - up to WUXGA compatible, WUXGA (P554U/P474U) / WXGA (P554W/P474W) and XGA (P604X/P603X/PE523X) native resolution.
An image with higher or lower resolution than the projector’s native resolution (P554W/P474W: 1,280 × 800 / P604X/P603X/PE523X: 1,024 × 768) is displayed with Advanced AccuBlend.

Low TCO - Improved a Power Consumption and Longer Lamp Life

Select from Four Lamp Modes for Suitable Usage

ECO MODE (NORMAL and ECO) increases lamp life up to 8,000 hours, lowering power consumption and cutting down on CO₂ emissions. There are four brightness modes: “OFF”, “AUTO ECO”, “NORMAL” and “ECO” modes.

[ECO MODE]	Description
[OFF]	Lamp brightness is 100%.
[AUTO ECO]	Lamp power consumption is controlled between [OFF] and [NORMAL] automatically according to picture level NOTE: A bright gradation may be less visible depending on the image.
[NORMAL]	Lamp power consumption: approx. 80% brightness on P554U/ P554W/P604X/P603X and approx. 86% on P474U/P474W/PE523X The lamp life is extended by lowering the lamp power.
[ECO]	Lamp power consumption: approx. 60% brightness on P554U/ P554W/P604X/P603X and approx. 65% on P474U/P474W/PE523X The lamp life is longer than with NORMAL mode because power is controlled appropriately for the lamp. The maximum power is equivalent to power in NORMAL mode.

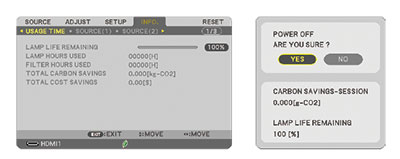

Carbon Meter

The amount of CO₂ emission reduction is displayed in the confirmation message when the power is switched off and in the INFO section of the on-screen menu.

Energy Saving Technology

Selecting “NORMAL” for “STANDBY MODE” from the menu puts the projector in power-saving mode that consumes only 0.14 W* (100 – 130 V AC) / 0.17 W** (200 – 240 V AC) in “STANDBY MODE”.

* P554W/P474W/P604X/P603X/PE523X: 0.16W
** P554W/P474W/P604X/P603X/PE523X: 0.2W

Easy Installation by Keystone Correction, Lens Shift and 1.7x Optical Zoom*

* P554W/P474W/P604X/P603X/PE523X, P554U/P474U are 1.6× optical zoom

Easily Adjustment of the Position of the Projected Image

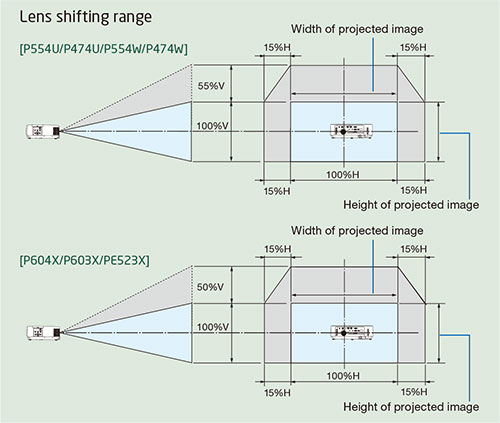

A vertical and horizontal lens shift mechanism offers installation flexibility. Manual lens shift can be adjusted by turning the dials on the top of the projector. The wide 1.7× optical zoom*, horizontal/vertical lens shift and keystone correction allow flexible settings in various locations.

* P554W/P474W/P604X/P603X/PE523X, P554U/P474U are 1.6× optical zoom

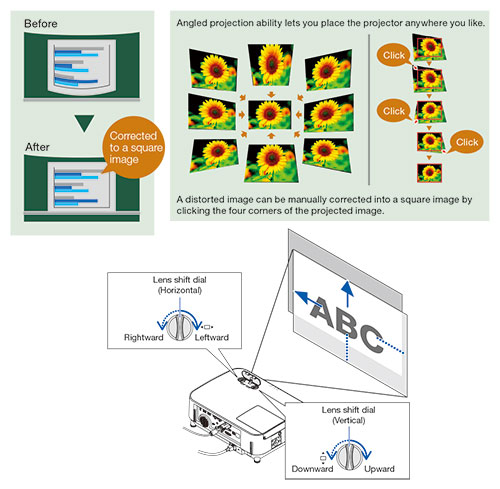

Cornerstone and Pincushion Correction Function

Cornerstone uses 4-point corner to correct keystone distortion.
Pincushion correction is available for curved boards.

Quick and Auto Function for Ease of Use

Quick Start, Quick Power Off and Direct Power Off

Six seconds^*1 after turning on the power, the projector is ready to display PC or video images. The projector can be put away immediately after the projector is powered down. The “Direct Power Off” feature allows the projector to be turned off (even when projecting an image) by using the main power switch or disconnecting the AC power supply.

*1 The quick start time is available when [STANDBY MODE] is set to [NETWORK STANDBY] in the on-screen menu.

Auto Power On and Auto Power Off

The DIRECT POWER ON, AUTO POWER ON, AUTO POWER OFF, and OFF TIMER features eliminate the need to always use the POWER button on the remote control or projector cabinet. Auto power-on via the HDMI 1, HDMI 2 and COMPUTER input terminals occurs when a signal is detected from a computer. Power management automatically turns off the projector when an incoming signal is not detected from any of the inputs. An off-timer can be set to automatically turn off the projector at set countdown times.

A variety of Input/Output Terminals Including HDMI, HDBaseT* and Network Function

Built-in HDBaseT Support*

* excluding the P603X/PE523X

Wired / Wireless LAN Control Support

Thanks to the integrated LAN port (RJ-45), you can connect the projector with wired LAN and control it from a computer. Control can also be carried out via wireless LAN by installing the optional wireless LAN unit (NP05LM series) to this projector.

*Since image transfer is not supported, the optional MultiPresenter Stick is needed to transfer images.
  No additional power source is needed as the stick is powered via the USB port.

Dual HDMI Inputs

Convenient Utility Software (User Support Software)

Support of NaViSet Administrator 2, Virtual Remote Tool

Other Useful Functions and Features

• Remote control with Control ID
  • The supplied remote control allows you to assign a CONTROL ID to the projector.
  • The included remote control has a control ID registration function, which allows operation of multiple projectors with a single remote.
• CRESTRON ROOMVIEW and Extron XTP compatibility
  • The projector supports CRESTRON ROOMVIEW and Extron XTP, allowing multiple devices connected to a network to be managed and controlled from a computer
  • Moreover, it enables output and control of an image via an Extron XTP transmitter connected to the projector.
• Wall colour correction for vivid images even without a screen
• DICOM simulation
• Security bar / kensington lock / control panel lock and password lock
• USB port for viewer function
• No-signal guidance is available for easy cable connections.
• A powerful 20 watt monaural speaker provides the volume needed for large rooms.

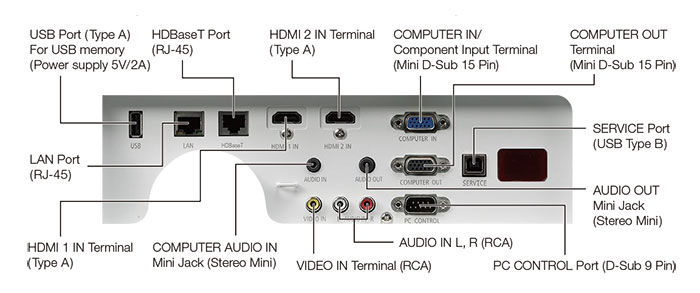

Terminals

Specifications

• *1:Effective pixels are more than 99.99 %.
• *2:Wattage when ECO mode is OFF.
• *3:Time at which the light source is at half brightness; not a guarantee time.
• *4:This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. In other modes, the light output value may drop slightly.
• *5:Compliant with ISO21118-2012
• *6:Measured at center area of projector screen.
• *7:If you are unable to view material via the HDMI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision or intention of the HDCP community. (Digital Content Protection, LLC). Video: Deep Colour; 8/10/12-bit, LipSync Audio: LPCM; up to 2 ch, sample rate 32/44.1/48 KHz, sample bit; 16/20/24-bit
• *8:Internal measured value. All wired network ports are connected and active.
• *9:100 V – 130 V AC
• *10:200 V – 240 V AC
• • These specifications and the product’s design are subject to change without notice.

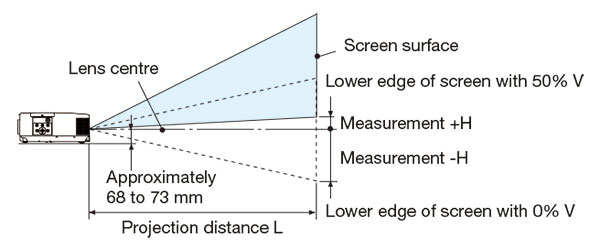

Throwing Distance and Screen Size

NP-P554U / NP-P474U (WUXGA)

Screen Size (W × H m)	Throwing Distance (m)		Bottom Height (cm)
	Wide	Tele	0% V – 55% V
30" (0.65 × 0.40 m)	0.75	1.25	-20.2 – +2.0
40" (0.86 × 0.54 m)	1.02	1.68	-26.9 – +2.7
60" (1.29 × 0.80 m)	1.55	2.54	-40.4 – +4.0
80" (1.72 × 1.08 m)	2.09	3.40	-53.8 – +5.4
100" (2.15 × 1.35 m)	2.62	4.26	-67.3 – +6.7
120" (2.59 × 1.62 m)	3.15	5.12	-80.8 – +8.0
150" (3.23 × 2.02 m)	3.95	6.42	-101.0 – +10.1
180" (3.88 × 2.42 m)	4.75	7.71	-121.2 – +12.1
200" (4.31 × 2.69 m)	5.29	8.57	-134.6 – +13.5
240" (5.17 × 3.23 m)	6.35	10.29	-161.5 – +16.2
300" (6.46 × 4.04 m)	7.95	12.88	-201.9 – +20.2

NP-P554W / NP-P474W (WXGA)

Screen Size (W × H m)	Throwing Distance (m)		Bottom Height (cm)
	Wide	Tele	0% V – 55% V
30" (0.65 × 0.40 m)	0.74	1.28	-20.2 – +2.0
40" (0.86 × 0.54 m)	1.01	1.73	-26.9 – +2.7
60" (1.29 × 0.80 m)	1.55	2.63	-40.4 – +4.0
80" (1.72 × 1.08 m)	2.10	3.53	-53.8 – +5.4
100" (2.15 × 1.35 m)	2.64	4.44	-67.3 – +6.7
120" (2.59 × 1.62 m)	3.18	5.34	-80.8 – +8.0
150" (3.23 × 2.02 m)	4.00	6.69	-101.0 – +10.1
180" (3.88 × 2.42 m)	4.82	8.05	-121.2 – +12.1
200" (4.31 × 2.69 m)	5.36	8.95	-134.6 – +13.5
240" (5.17 × 3.23 m)	6.45	10.76	-161.5 – +16.2
300" (6.46 × 4.04 m)	8.08	13.46	-201.9 – +20.2

NP-P604X / NP-P603X / NP-PE523X (XGA)

Screen Size (W × H m)	Throwing Distance (m)		Bottom Height (cm)
	Wide	Tele	0% V – 55% V
30" (0.61 × 0.46 m)	0.75	1.31	-22.9 – 0
40" (0.81 × 0.61 m)	1.03	1.77	-30.5 – 0
60" (1.22 × 0.91 m)	1.59	2.69	-45.7 – 0
80" (1.63 × 1.22 m)	2.15	3.61	-61.0 – 0
100" (2.03 × 1.52 m)	2.70	4.54	-76.2 – 0
120" (2.44 × 1.83 m)	3.26	5.46	-91.4 – 0
150" (3.05 × 2.29 m)	4.09	6.84	-114.3 – 0
180" (3.66 × 2.74 m)	4.93	8.23	-137.2 – 0
200" (4.06 × 3.05 m)	5.48	9.15	-152.4 – 0
240" (4.88 × 3.66 m)	6.59	11.00	-182.9 – 0
300" (6.10 × 4.57 m)	8.26	13.77	-228.6 – 0

• *Stated projection distances are standard values from lens or mirror surface to screen centre.
• *The values in the table are design values and may vary.

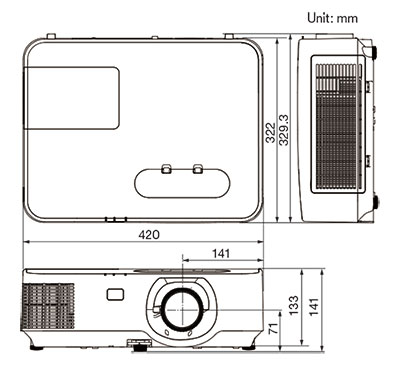

Cabinet dimensions

Accessories

Remote control (included accessory)

Options

• *Do not stare into the lens during use.
• *The projector can be unplugged immediately after it is turned off. Parts of the projector become heated during operation. Use caution when picking up the projector immediately after it has been operating.
