PA803U / PA723U / PA653U / PA853W / PA703W / PA903X

Professional projectors of high performance and brighter LCD models that are lightweight and compact Professional Installation Projector

PA803U / PA723U / PA653U / PA853W / PA703W / PA903X

HDBaseT HDMI DisplayPort

A compact projector solution for large venue applications and vertical markets boasts Ultra HD support, wider colour space, scaling, resolution and reduced maintenance

spec

Brightness using NP13ZL or NP41ZL. Weight does not include lens.

Functions and Features

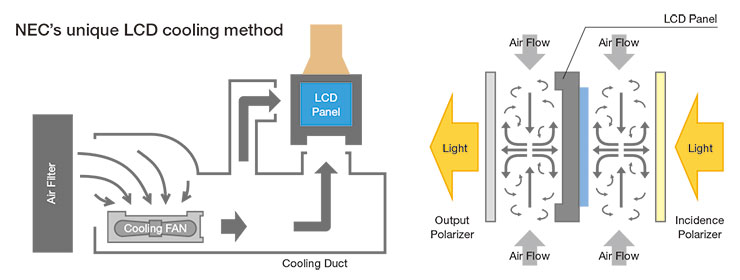

A High-efficiency Design with High-brightness Projection and Reduced Maintenance

The Lightest and Most Compact WUXGA Projector Over 8000 lumens (NP-PA803U)*

A lightweight and compact WUXGA projector (NP-PA803U) of 10.2 kg, 33.23 liters** and 8000 lumens brightness with NEC’s unique cooling system for the LCD panel (patented) and the lamp.

* Not including lens, according to our research as of January 2017
** Not including protruding parts

An Energy-saving Design with Standby Power Consumption

When the on-screen menu’s standby mode is set to “NORMAL”, power consumption in standby mode with power management on is 0.15 W (100 – 130 V) / 0.21 W (200 – 240 V) and 0.11 W (100 – 130 V) / 0.16 W (200 – 240 V) when the LAN is off.

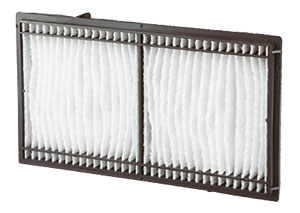

Reduce Maintenance and Expenses

When Eco mode is used, lamp replacement time is extended to a maximum of 5,000 hours*. At the same time, the maximum usage time for the filter is 10,000 hours**. This virtually maintenance-free filter reduces the frequency at which cleaning is required, thereby decreasing total cost of ownership.

* This time is not guaranteed.
** Varies by projector installation conditions.

A High-definition Design to Meet the Era of High-resolution Content and Devices

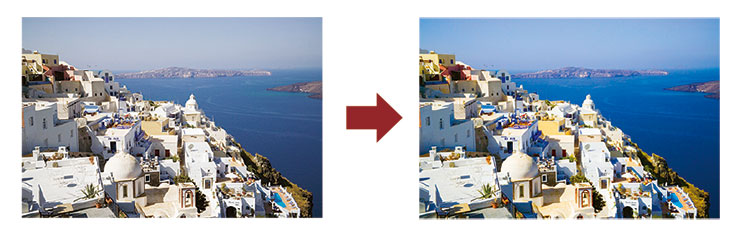

NEC's Unique High-definition Functionality with the 4th Generation of "SweetVision“ for 4K Content

“SweetVision” newly supports 4K 60 Hz input signals and has been upgraded to support HDR10 and Rec.2020 signal inputs. It offers a high definition image by raising the contrast in the boundary parts of an image by using the “Craik-O’Brien-Cornsweet effect”.

Geometric Correction

Supports High-definition Processing of Both Digital and Analogue Inputs

10-bit high-definition signal processing is possible with all digital and analogue inputs. An image can be projected with an excellent contrast of 1024 gradations and over 1 billion colours in 4K images.

4K Ready

The New PA series supports HDR10 and BT.2020 signals for various 4K content (including next generation “Ultra HD Blu-ray” and “4K TV broadcasting”).

Multiple Input Terminals for HDMI and DisplayPort and Input and Output Terminals for HDBaseT

The First Projector Available Worldwide with Built-in HDBaseT (IN/OUT) Support (NP-PA803U)*

Simplify your installations with HDBaseT. The projector is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, power and control signals. With only a single cable (up to 100 m) to run, infrastructure and labour costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.

* Passed the examination of the testing agencies approved by the HDBaseT Alliance as of December 15th, 2016.
Website of HDBaseT Alliance: http://hdbaset.org/advanced-search

A Wide Selection of Digital Inputs such as HDMI and DisplayPort

Among the PA Series’ wide selection of inputs are dual HDMI with HDCP and DisplayPort with HDCP for connecting to high-definition sources such as Blu-ray players, cable boxes, satellite receivers and personal computers.

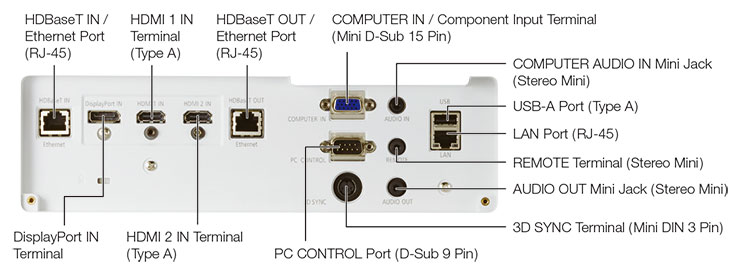

Terminals

Excellent Ease of Installation and Functionality in Various Uses and Applications

Multi-screen Function

Multi-display capabilities and tiling technologies are integrated. The projector is also equipped with multiple digital input and HDBaseT output terminals that can connect multiple projectors in a digital daisy chain. These cutting-edge functions produce a beautiful high-resolution image, including a 4K high-resolution display using 4 projectors and various picture-in-picture and picture-by-picture configurations.

Screen Splitter

NEC is committed to bringing the latest and greatest Innovations to projectors. Multi-display capabilities and TileMatrix technologies are integrated into these projectors by using the HDBaseT repeater function (IN/OUT). This processing is all done internally and therefore eliminates the additional hardware typically required to produce a beautiful 4K resolution image.

Screen Splitter (Multi-display) by Daisy Chain

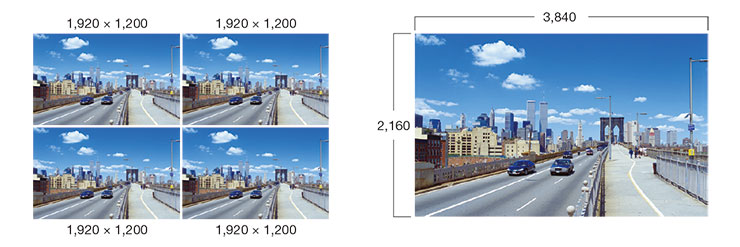

Using four WUXGA projectors to project videos with a resolution of 4K (3,840 × 2,160 pixels) [TILING] On-screen menu operations

Use four projectors to display four similar videos.
Operate the on-screen menu using the four respective projectors to divide the image into four portions.
Adjust the lens shift of each projector to fine-tune the boundaries of the screen.

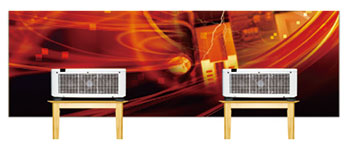

Edge Blending

This function seamlessly blends multiple projected images to display a single high-resolution image.

New Optional Lenses with Peripheral Motorised Focus Features and Advanced Dust-proof Construction

Eight types of optional lenses are available along with the new NP40ZL, NP41ZL and NP43ZL as dust proof lenses with motorised zoom/focus and with a memory function. They correspond to screen sizes from 30 to 500 inches. A selection of wide zoom lenses with wide vertical and horizontal lens shift and control code emulation are available, guaranteeing hassle-free installation and replacement of existing installation projectors.
The NP40ZL and NP41ZL projectors are also equipped with peripheral motorised focus, and focus adjustment is possible in 2 stages by the centre and the periphery, which offers excellent image quality. Lenses can be mounted and removed with one touch.

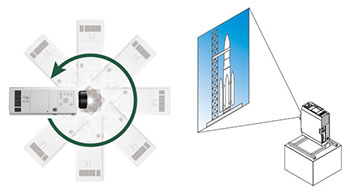

Tilt-free and Portrait Installation Support

The projector can be rotated freely (360°) to point up or down depending on the installation requirements and can be rotated and installed on its side to create a portrait image.

Optional Lens specifications

Model		NP11FL	NP30ZL	NP12ZL	NP13ZL	NP14ZL	NP40ZL	NP41ZL	NP43ZL
Lens Type		Fixed Short Throw Lens	Zoom Lens (Short Throw)	Zoom Lens
Zoom / Focus		Manual					Motorised
F# (Wide – Tele)		2.3	1.9 – 2.1	2.2 – 2.7	1.7 – 2.4	2.2 – 2.6	2.0 – 2.5	1.7 – 2.0	2.2 – 2.6
f (mm)		13.2	13.2 – 17.2	19.4 – 25.3	24.4 – 48.6	48.5 – 77.6	13.3 – 18.6	21.8 – 49.7	49.7 – 99.8
Throw ratio (WUXGA @ 100 inch)		0.79:1	0.79 – 1.04:1	1.16 – 1.52:1	1.46 – 2.95:1	2.90 – 4.68:1	0.79 – 1.11:1	1.30 – 3.02:1	2.99 – 5.93:1
Zoom Ratio		–	1.3	1.3	2.0	1.6	1.4	2.3	2.0
Screen Size (Performance guarantee range)		40 – 160 inch* (60 – 150 inch)	50 – 500 inch (60 – 180 inch)	30 – 500 inch (40 – 200 inch)	30 – 500 inch (40 – 200 inch)	60 – 500 inch (60 – 200 inch)	50 – 500 inch (80 – 200 inch)
Light Output	PA803U	5,400 lm	7,600 lm	5,800 lm	8,000 lm	6,100 lm	6,800 lm	8,000 lm	5,700 lm
	PA723U	4,800 lm	6,800 lm	5,300 lm	7,200 lm	5,500 lm	6,100 lm	7,200 lm	5,400 lm
	PA653U	4,400 lm	6,200 lm	4,800 lm	6,500 lm	5,000 lm	5,500 lm	6,500 lm	5,100 lm
	PA853W	6,000 lm	8,100 lm	6,400 lm	8,500 lm	6,500 lm	7,200 lm	8,500 lm	5,700 lm
	PA703W	5,000 lm	6,700 lm	5,300 lm	7,000 lm	5,400 lm	5,900 lm	7,000 lm	5,400 lm
	PA903X	6,800 lm	8,600 lm	7,100 lm	9,000 lm	7,400 lm	7,600 lm	9,000 lm	5,400 lm
Weight		1.2 kg	1.14 kg	1.2 kg	0.84 kg	1.0 kg	1.6 kg	1.8 kg	1.8 kg

* WUXGA and WXGA models: 40 – 150 inch

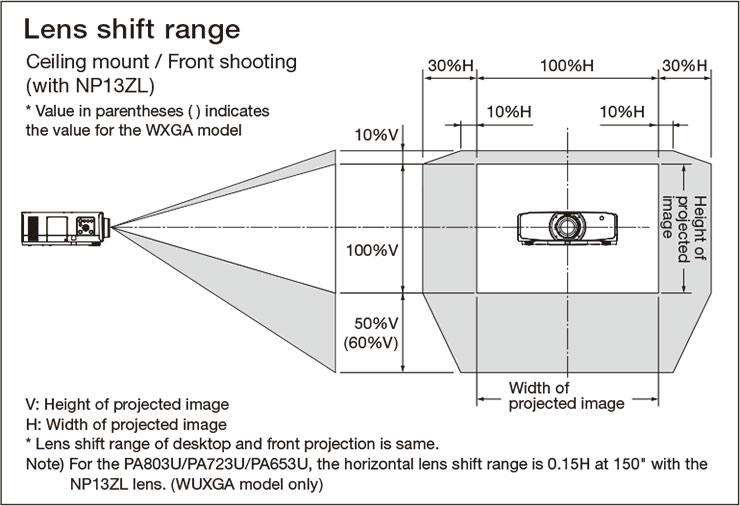

Lens shift range

Other Useful Functions and Features

Cornerstone
Geometric correction to project an image on more non-standard surfaces
Stacking correction to boost image brightness
Centre lens design for easy setup
Lens memory
Carbon meter to check the amount of reduction of CO2 in eco mode
Seamless switch function for smoother screen changes when switching the signal
Network control
- NaViSet Administrator 2
- PC control
- Alert mail
- CRESTRON ROOMVIEW
- AMX BEACON
- PJLink
- HTTP server (projector adjustment)
Wall colour correction
PIN security / control panel lock / security bar / security slot
DICOM simulation

Specifications

Model				NP-PA803U	NP-PA723U	NP-PA653U
Method				Three primary colour liquid crystal shutter projection
Specifications of main parts
	Liquid crystal panel	Size		0.76" (with DMLA) × 3 (aspect ratio: 16:10)
	Liquid crystal panel	Pixels*1		2,304,000 (1,920 dots × 1,200 lines)
	Projection lenses*2	Zoom		zoom range depends on lens
		Focus		Motorised3 / Manual4
		Lens shifting		Refer to Lens Specifications
	Lamp wattage*5			420 W AC	400 W AC	370 W AC
Light source (Lamp) life*6		ECO mode OFF		3,000 H	3,500 H	4,000 H
Light source (Lamp) life*6		ECO mode		5,000 H	5,000 H	5,000 H
Light output7 8 *9		ECO mode OFF		8,000 lm	7,200 lm	6,500 lm
Light output7 8 *9		ECO mode		4,800 lm	4,800 lm	4,800 lm
Contrast ratio*8 (all white / all black)				10k: 1 with Iris Lamp Adj	8k: 1 with Iris Lamp Adj
Screen size (throw distance)				30" to 500" (throw distance depends on lens)
Colour reproducibility				10-bit colour processing (approx. 1.07 billion colours)
Scan rate		Horizontal		Analogue: 15 kHz, 24 to 100 kHz (24 kHz or greater for RGB inputs), conforms to VESA standards / Digital: 15 kHz, 24 to 153 kHz, conforms to VESA standards
Scan rate		Vertical		Analogue: 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards / Digital: 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards
Maximum resolution (horizontal × vertical)				Analogue: 1,920 × 1,200 (with Advanced AccuBlend) / Digital: 4,096 × 2,160 (with Advanced AccuBlend)
Keystone Correction		Horizontal		Manual, Approx. ± 40 Max degrees
Keystone Correction		Vertical		Manual, Approx. ± 40 Max degrees
Input / output connectors
	Computer / Component	Video input		Mini D-Sub 15-pin × 1
		Audio input		Stereo mini jack × 1
		Audio output		Stereo mini jack × 1 (common for all signals)
	HDMI	Video input		Type A HDMI connector × 2, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync, HDR
	HDMI	Audio input		Yes
	HDBaseT / Ethernet Port	Video input		RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync, HDR
		Audio input		Yes
		Video output		RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync
		Audio output		Yes
	DisplayPort	Video input		DisplayPort 20 pin connecter × 1, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP*10
	DisplayPort	Audio input		Yes
	PC control connector			D-Sub 9-pin × 1
	USB port			USB type A × 1, (USB 2.0 High speed / Full speed / Low speed) for Mouse
	Ethernet / LAN / HDBaseT port			RJ-45 × 1, Supports 10BASE-T / 100BASE-TX, HDBaseT
	Remote connector			Stereo mini jack × 1
	3D SYNC output terminal			5 V / 10 mA, synchronized signal output for 3D use
Usage environment			Operating temperature: 5 to 40°C*11, Operating humidity: 20 to 80 % (with no condensation)
			Storage temperature: -10 to 50°C, Storage humidity: 20 to 80 % (with no condensation)
			Operating altitude: 0 to 3,650 m (1,700 to 3,650 m: Set [FAN MODE] to [HIGH ALUTITUDE] )
Power supply				100 – 240 V AC, 50/60 Hz
Power consumption		ECO mode OFF	566 W (100 – 130 V)		542 W (100 – 130 V)	506 W (100 – 130 V)
		ECO mode OFF	542 W (200 – 240 V)		518 W (200 – 240 V)	482 W (200 – 240 V)
		ECO mode		390 W (100 – 130 V) / 376 W (200 – 240 V)
		STANDBY (Link-up)		0.15 W (100 – 130 V) / 0.21 W (200 – 240 V)
		STANDBY (Link-down)*12		0.11 W (100 – 130 V) / 0.16 W (200 – 240 V)
Rated input current				6.2 A – 2.6 A	6.0 A – 2.5 A	5.6 A – 2.3 A

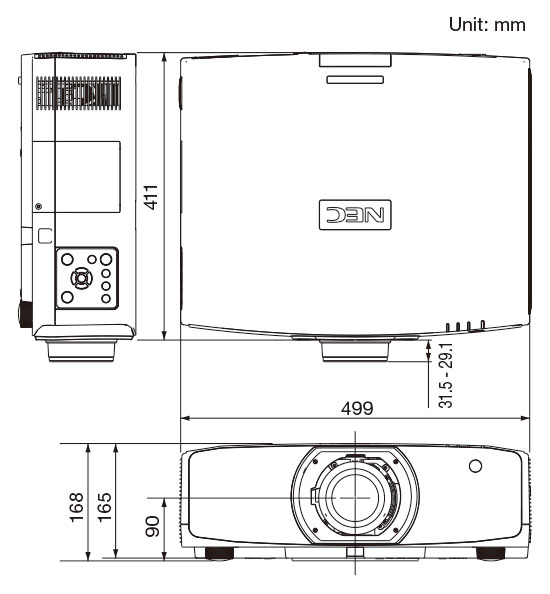

Dimensions (W × H × D)				499 × 164 × 406 mm (Net dimensions, not including protruding parts), 591 × 259 × 491 mm (Gross dimensions)
Weight				10.2 kg (not including lens), 12.5 kg (Gross weight)

Model			NP-PA853W	NP-PA703W	NP-PA903X
Method			Three primary colour liquid crystal shutter projection
Specifications of main parts
	Liquid crystal panel	Size	0.76" (with MLA) × 3 (aspect ratio: 16:10)		0.76" (with MLA) × 3 Size (aspect ratio: 4:3)
	Liquid crystal panel	Pixels*1	1,024,000 (1,280 dots × 800 lines)		786,432 (1,024 dots × 768 lines)
	Projection lenses*2	Zoom	zoom range depends on lens
		Focus	Motorised3 / Manual4
		Lens shifting	Refer to Lens Specifications
	Lamp wattage*5		420 W AC	370 W AC	420 W AC
Light source (Lamp) life*6		ECO mode OFF	3,000 H	4,000 H	3,000 H
Light source (Lamp) life*6		ECO mode	5,000 H	5,000 H	5,000 H
Light output7 8 *9		ECO mode OFF	8,500 lm	7,000 lm	9,000 lm
Light output7 8 *9		ECO mode	5,100 lm	5,100 lm	5,400 lm
Contrast ratio*8 (all white / all black)			10k: 1 with Iris Lamp Adj	8k: 1 with Iris Lamp Adj	10k: 1 with Iris Lamp Adj
Screen size (throw distance)			30" to 500" (throw distance depends on lens)
Colour reproducibility			10-bit colour processing (approx. 1.07 billion colours)
Scan rate		Horizontal	Analogue: 15 kHz, 24 to 100 kHz (24 kHz or greater for RGB inputs), conforms to VESA standards / Digital: 15 kHz, 24 to 153 kHz, conforms to VESA standards
Scan rate		Vertical	Analogue: 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards / Digital: 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz conforms to VESA standards
Maximum resolution (horizontal × vertical)			Analogue: 1,920 × 1,200 (with Advanced AccuBlend) / Digital: 4,096 × 2,160 (with Advanced AccuBlend)
Keystone Correction		Horizontal	Manual, Approx. ± 40 Max degrees
Keystone Correction		Vertical	Manual, Approx. ± 40 Max degrees
Input / output connectors
	Computer / Component	Video input	Mini D-Sub 15-pin × 1
		Audio input	Stereo mini jack × 1
		Audio output	Stereo mini jack × 1 (common for all signals)
	HDMI	Video input	Type A HDMI connector × 2, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync, HDR
	HDMI	Audio input	Yes
	HDBaseT / Ethernet Port	Video input	RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, YCbCr420, Rec.2020, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync, HDR
		Audio input	Yes
		Video output	RJ45 × 1, Support 100BASE-TX, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP*10, LipSync
		Audio output	Yes
	DisplayPort	Video input	DisplayPort 20 pin connecter × 1, Deep Colour (colour depth): Support 8bits, 10bits, 12bits, Colourimetry Support: RGB, YCbCr444, YCbCr422, Rec.709, Rec.601, Support 4K, 3D, HDCP*10
	DisplayPort	Audio input	Yes
	PC control connector		D-Sub 9-pin × 1
	USB port		USB type A × 1, (USB 2.0 High speed / Full speed / Low speed) for Mouse
	Ethernet / LAN / HDBaseT port		RJ-45 × 1, Supports 10BASE-T / 100BASE-TX, HDBaseT
	Remote connector		Stereo mini jack × 1
	3D SYNC output terminal		5 V / 10 mA, synchronized signal output for 3D use
Usage environment			Operating temperature: 5 to 40°C*11, Operating humidity: 20 to 80 % (with no condensation)
			Storage temperature: -10 to 50°C, Storage humidity: 20 to 80 % (with no condensation)
			Operating altitude: 0 to 3,650 m (1,700 to 3,650 m: Set [FAN MODE] to [HIGH ALUTITUDE] )
Power supply			100 – 240 V AC, 50/60 Hz
Power consumption		ECO mode OFF	566 W (100 – 130 V)	506 W (100 – 130 V)	566 W (100 – 130 V)
		ECO mode OFF	542 W (200 – 240 V)	482 W (200 – 240 V)	542 W (200 – 240 V)
		ECO mode	390 W (100 – 130 V) / 376 W (200 – 240 V)
		STANDBY (Link-up)	0.15 W (100 – 130 V) / 0.21 W (200 – 240 V)
		STANDBY (Link-down)*12	0.11 W (100 – 130 V) / 0.16 W (200 – 240 V)
Rated input current			6.2 A – 2.6 A	5.6 A – 2.3 A	6.2 A – 2.6 A
Dimensions (W × H × D)			499 × 164 × 406 mm (Net dimensions, not including protruding parts), 591 × 259 × 491 mm (Gross dimensions)
Weight			10.2 kg (not including lens), 12.5 kg (Gross weight)

*1: Effective pixels are more than 99.99 %.
*2: Refer to Lens Specifications
*3:　 When attached with NP40ZL, NP41ZL, NP43ZL
*4:When attached with NP30ZL, NP11FL, NP12ZL, NP13ZL, NP14ZL
*5: Wattage when ECO mode is OFF.
*6: Time at which the light source is at half brightness; not a guarantee time.
*7: This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
*8: Compliance with ISO21118-2012
*9: When attached with NP13ZL or NP41ZL and Eco mode OFF
*10: If you are unable to view material via the HDMI DisplayPort and HDBaseT input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community. (Digital Content Protection, LLC). HDMI: Supports HDCP2.2/1.4, DisplayPort: Supports HDCP1.4, HDBaseT: Supports HDCP2.2/1.4
*11: 35 to 40°C – “Forced ECO mode”
*12: Internal measured value. All wired network ports are connected and active.

These specifications and the product’s design are subject to change without notice.

Throw Distance and Screen Size

NP-PA803U / NP-PA723U / NP-PA653U (WUXGA)

Unit: m

Screen Size (W × H)	Lens unit model name
Screen Size (W × H)	NP11FL		NP30ZL	NP12ZL	NP13ZL	NP14ZL	NP40ZL	NP41ZL	NP43ZL
30" (0.65 × 0.40)		–	–	0.7 – 0.9	0.9 – 1.9	–	–	–	–
40" (0.86 × 0.54)		0.7	–	1.0 – 1.3	1.2 – 2.5	–	–	–	–
60" (1.29 × 0.80)		1.0	1.0 – 1.3	1.5 – 1.9	1.9 – 3.8	3.7 – 6.0	1.0 – 1.4	1.7 – 3.9	3.9 – 7.7
80" (1.72 × 1.08)		1.4	1.4 – 1.8	2.0 – 2.6	2.5 – 5.1	5.0 – 8.0	1.4 – 1.9	2.2 – 5.2	5.2 – 10.2
100" (2.15 × 1.35)		1.7	1.7 – 2.2	2.5 – 3.3	3.2 – 6.3	6.3 – 10.1	1.7 – 2.4	2.8 – 6.5	6.4 – 12.8
120" (2.59 × 1.62)		2.1	2.0 – 2.7	3.0 – 3.9	3.8 – 7.6	7.5 – 12.1	2.0 – 2.9	3.4 – 7.8	7.7 – 15.3
150" (3.23 × 2.02)		2.6	2.6 – 3.4	3.8 – 4.9	4.8 – 9.5	9.4 – 15.2	2.6 – 3.6	4.2 – 9.8	9.6 – 19.1
200" (4.31 × 2.69)		–	3.4 – 4.5	5.1 – 6.6	6.4 – 12.7	12.6 – 20.3	3.4 – 4.8	5.7 – 13.0	12.7 – 25.4
240" (5.17 × 3.23)		–	4.1 – 5.4	6.1 – 7.9	7.6 – 15.3	15.2 – 24.4	4.1 – 5.8	6.8 – 15.6	15.3 – 30.5
300" (6.46 × 4.04)		–	5.2 – 6.8	7.6 – 9.9	9.6 – 19.1	19.0 – 30.5	5.2 – 7.3	8.5 – 19.6	19.1 – 38.1
400" (8.62 × 5.39)		–	6.9 – 9.0	10.2 – 13.2	12.8 – 25.5	25.4 – 40.7	6.9 – 9.7	11.4 – 26.1	25.4 – 50.8
500" (10.77 × 6.73)		–	8.7 – 11.3	12.7 – 16.5	16.0 – 31.9	31.8 – 50.9	8.6 – 12.1	14.2 – 32.6	31.7 – 63.4

NP-PA853W / NP-PA703W (WXGA)

Unit: m

Screen Size (W × H)	Lens unit model name
Screen Size (W × H)	NP11FL		NP30ZL	NP12ZL	NP13ZL	NP14ZL	NP40ZL	NP41ZL	NP43ZL
30" (0.65 × 0.40)		–	–	0.7 – 1.0	0.9 – 1.9	–	–	–	–
40" (0.86 × 0.54)		0.7	–	1.0 – 1.3	1.2 – 2.5	–	–	–	–
60" (1.29 × 0.80)		1.0	1.0 – 1.3	1.5 – 2.0	1.9 – 3.8	3.7 – 6.0	1.0 – 1.4	1.7 – 3.9	3.9 – 7.7
80" (1.72 × 1.08)		1.4	1.4 – 1.8	2.0 – 2.6	2.5 – 5.1	5.0 – 8.1	1.4 – 1.9	2.2 – 5.2	5.2 – 10.3
100" (2.15 × 1.35)		1.7	1.7 – 2.2	2.5 – 3.3	3.2 – 6.4	6.3 – 10.1	1.7 – 2.4	2.8 – 6.5	6.5 – 12.8
120" (2.59 × 1.62)		2.1	2.0 – 2.7	3.0 – 4.0	3.8 – 7.7	7.6 – 12.2	2.1 – 2.9	3.4 – 7.8	7.7 – 15.4
150" (3.23 × 2.02)		2.6	2.6 – 3.4	3.8 – 5.0	4.8 – 9.6	9.5 – 15.3	2.6 – 3.6	4.3 – 9.8	9.6 – 19.2
200" (4.31 × 2.69)		–	3.4 – 4.5	5.1 – 6.6	6.4 – 12.8	12.7 – 20.4	3.4 – 4.9	5.7 – 13.1	12.8 – 25.5
240" (5.17 × 3.23)		–	4.1 – 5.4	6.1 – 8.0	7.7 – 15.4	15.3 – 24.5	4.1 – 5.8	6.8 – 15.7	15.3 – 30.6
300" (6.46 × 4.04)		–	5.2 – 6.8	7.7 – 10.0	9.6 – 19.2	19.1 – 30.7	5.2 – 7.3	8.6 – 19.6	19.1 – 38.2
400" (8.62 × 5.39)		–	6.9 – 9.0	10.2 – 13.3	12.8 – 25.7	25.5 – 40.9	6.9 – 9.7	11.4 – 26.2	25.5 – 51.0
500" (10.77 × 6.73)		–	8.7 – 11.3	12.8 – 16.7	16.1 – 32.1	31.9 – 51.2	8.7 – 12.2	14.3 – 32.8	31.8 – 63.7

NP-PA903X (XGA)

Unit: m

Screen Size (W × H)	Lens unit model name
Screen Size (W × H)	NP11FL		NP30ZL	NP12ZL	NP13ZL	NP14ZL	NP40ZL	NP41ZL	NP43ZL
30" (0.61 × 0.46)		–	–	0.7 – 0.9	0.9 – 1.8	–	–	–	–
40" (0.81 × 0.61)		0.6	–	0.9 – 1.2	1.2 – 2.4	–	–	–	–
60" (1.22 × 0.91)		1.0	1.0 – 1.3	1.4 – 1.9	1.8 – 3.7	3.6 – 5.8	1.0 – 1.4	1.6 – 3.7	3.8 – 7.4
80" (1.63 × 1.22)		1.3	1.3 – 1.7	1.9 – 2.5	2.4 – 4.9	4.8 – 7.8	1.3 – 1.8	2.2 – 5.0	5.0 – 9.9
100" (2.03 × 1.52)		1.6	1.6 – 2.1	2.4 – 3.2	3.0 – 6.1	6.0 – 9.7	1.6 – 2.3	2.7 – 6.3	6.2 – 12.3
120" (2.44 × 1.83)		2	2.0 – 2.6	2.9 – 3.8	3.7 – 7.4	7.3 – 11.7	2.0 – 2.8	3.3 – 7.5	7.4 – 14.8
150" (3.05 × 2.29)		2.5	2.5 – 3.2	3.7 – 4.8	4.6 – 9.2	9.1 – 14.7	2.5 – 3.5	4.1 – 9.4	9.3 – 18.4
200" (4.06 × 3.05)		–	3.3 – 4.3	4.9 – 6.4	6.1 – 12.3	12.2 – 19.6	3.3 – 4.7	5.5 – 12.5	12.3 – 24.5
240" (4.88 × 3.66)		–	4.0 – 5.2	5.9 – 7.7	7.4 – 14.8	14.7 – 23.6	4.0 – 5.6	6.6 – 15.1	14.7 – 29.4
300" (6.10 × 4.57)		–	5.0 – 6.5	7.4 – 9.6	9.2 – 18.5	18.4 – 29.5	5.0 – 7.0	8.2 – 18.8	18.4 – 36.7
400" (8.13 × 6.10)		–	6.7 – 8.7	9.8 – 12.8	12.3 – 24.7	24.5 – 39.3	6.7 – 9.4	11.0 – 25.1	24.5 – 48.9
500" (10.16 × 7.62)		–	8.4 – 10.9	12.3 – 16.0	15.4 – 30.9	30.7 – 49.2	8.3 – 11.7	13.7 – 31.4	30.5 – 61.1

*Stated projection distances are standard values from lens or mirror surface to screen centre.
*For a stack installation, the recommended projection distances will be different.
*The values in the table are design values and may vary.

Cabinet Dimensions

Cabinet dimensions

Accessories

Remote control (included accessory)

Remote control(included accessory)

Options

Replacement lamp
NP42LP

Replacement lamp(NP42LP)

Replacement filter
NP06FT

Cable Cover
NP10CV

MultiPresenter Stick
DS1-MP10RX*
* Make sure to choose the appropriate MultPresenter Stick for the usage country or area by visiting our website.
(http://www.nec-display.com/ap/en_display/mp10rx/index.html)

MultiPresenter Stick(DS1-MP10RX)

Lenses

NP11FL NP30ZL NP12ZL
NP13ZL NP14ZL
NP40ZL NP41ZL NP43ZL

Do not stare into the lens during use.
The projector can be unplugged immediately after it is turned off. Parts of the projector become heated during operation. Use caution when picking up the projector immediately after it has been operating.
