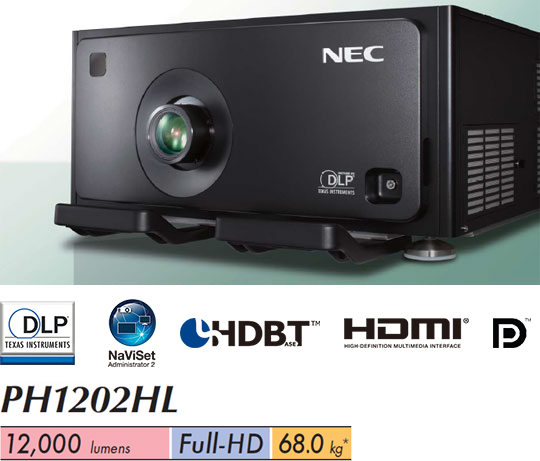

PH1202HL

A bright 3-chip DLP laser installation projector delivering all the benefits associated with the latest laser light source technology.

Functions and Features

Advanced installation capabilities
High brightness and outstanding images

The projector realizes a brightness of 12,000 lumens through use of a high-brightness laser light source, so vivid images are projected in large spaces such as halls and auditoriums. Furthermore, use of a Full-HD (1,920 × 1,080 pixels) 3-chip DLP® that allocates a single DLP® chip to each RGB color realizes high-resolution, largescreen projection that greatly surpasses that of 1-chip types. In addition, a unique high resolution function, 3rd generation contrast enhancement, increases the sense of contrast of the border areas of images to realize more vivid and sharper image projection.

No more lamp replacements

Up to 20,000 hours* of maintenance-free operation possible due to the laser light source.

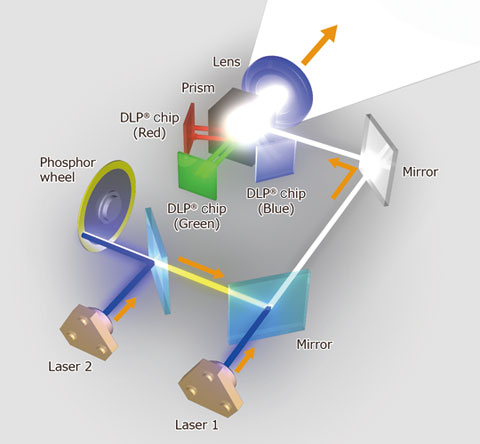

Light source and optical light path image

*Actual hours may vary depending on usage conditions. Not a guaranteed time.

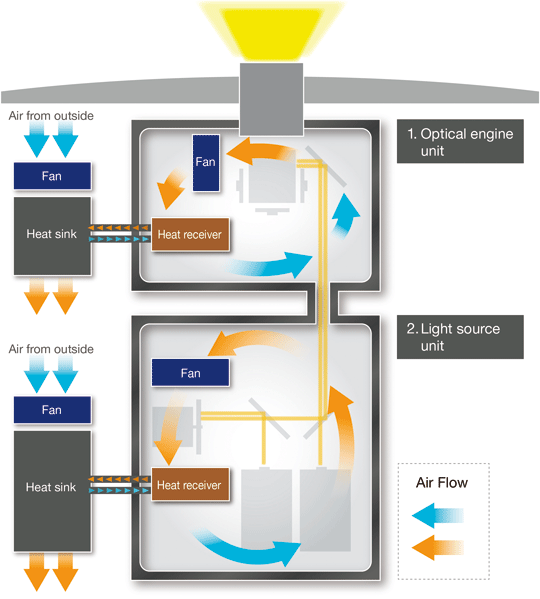

A dustproof design supported by NEC’s unique closed-loop cooling system

The projector has a dustproof design to prevent the staining of optical components from the ingress of dust and the deterioration of brightness and image quality. Heat within the dustproof unit is exhausted from a heatsink, and the external air used for cooling does not directly contact the optical system, so the design offers both excellent dustproofing and cooling.

Tilt-free and portrait installation support

The projector can be rotated freely (360 ° ) to point up or down depending on the installation requirements and can be rotated (along with the screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the sides when landscape mode is used.

Built-in edge blending

This function seamlessly blends multiple projected images to display a single high-resolution image.

Multiscreen function

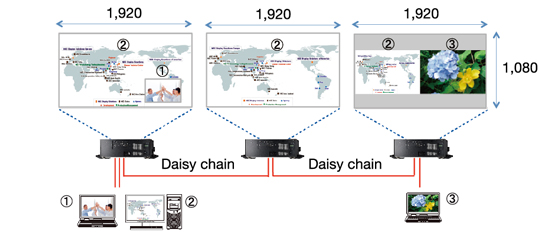

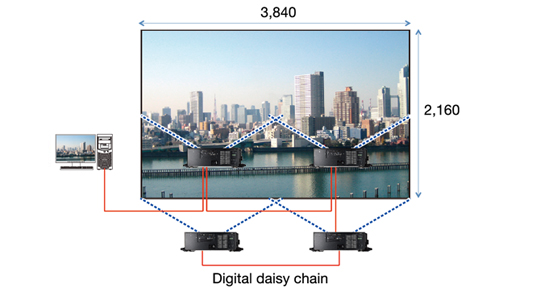

Multi-display capabilities and tiling technologies are integrated into the PH series. This projector is also equipped with multiple digital input and HDMI output terminals that can connect multiple projectors in a digital daisy chain. These cutting-edge functions produce a beautiful high-resolution image , including a 4K/2K high-resolution display using 4 PH1202HL projectors and various picture in picture / picture by picture configurations.

Multiscreen function

Multiscreen function

Geometric Correction

Projection isn’t confined to a standard flat screen or wall with the NEC PH series. Geometric correction allows these models to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.

Geometric Correction

Fantastic cinema quality picture
Equipped with NEC’s NV1301 4,096 × 2,160 scaler chip and the 3rd-generation contrast enhancement circuit

This 10-bit video processor represents an enormous leap in video processing, with true flagship performance in noise reduction, de-interlacing and scaling.

  • 4K Ultra HD support (4,096 × 2,160 / 3,840 × 2,160)
  • 12-bit gamma correction
  • Advanced colour correction (6-axis saturation and hue adjustment / skin tone)
  • Video and film cadence detection (multi-cadence)
  • Per-pixel motion adaptive de-interlacing
  • Detail enhancement
  • Super resolution correction (3rd-generation contrast enhancement)
  • 3D random, mosquito and block noise reduction
Compatible with diverse signal sources
Built-in HDBaseT support

Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals are contained in the same cable.

Wide selection of inputs and outputs such as HDMI and DisplayPort

The projector is equipped with a wide range of input/output terminals and compatible with a variety of image sources, which lets you connect HDMI, DisplayPort, computer (analogue), 5-core BNC, and video sources.

HDMI DisplayPort

Expansion Slot

The slot technology allows for the integration of Open Pluggable Specification (OPS*) boards and other option slot products without the need to store additional external equipment. This offers the greater flexibility customers require.

  • *OPS is a standard established by Intel Corporation.

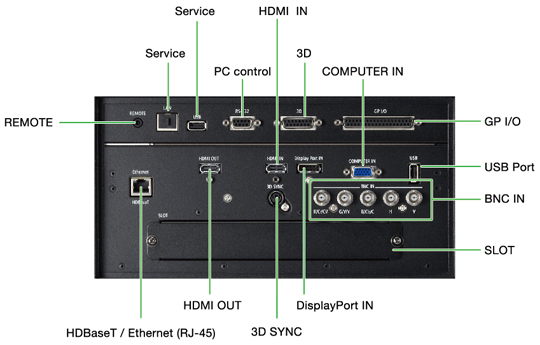

Terminals

Terminals

Other useful functions and features
  • Seamless switching
  • Lens shutter
  • Program timer with real time clock / off timer
  • Remote control ID
  • Silent design for 43 dB in ECO2 mode
  • Direct power on/off, auto power on/off
  • PIN security
  • Network control
    NaViSet Administrator 2 / PC control / Alert mail CRESTRON ROOMVIEW™ / AMX BEACON PJLink / HTTP server (projector adjustment)

Specifications

  NP-PH1202HL
Method 3 chip DMD reflection type
Specifications of main parts Main panel Size 3 × 0.65" 1080p (aspect ratio: 16:9)
Pixels *1 2,073,600 (1,920 dots × 1,080 lines)
Projection lenses Zoom Power-adjustable (range depends on lens)
Focus Power-adjustable
Lens shifting Power-adjustable (range depends on lens)
Light source Blue laser diode
Light source
(laser diode) Life *2
Normal mode 20,000 H
ECO1 /
ECO2 /Longlife
27,000 H / 40,000 H / 30,000 H
Optical unit 5 piece prism
Light output *3 *4 Normal mode 12,000 lm
ECO1 /
ECO2 /
Longlife
Approx. 80 % / 50 % / 90 %
Contrast ratio *4
(all white / all black)
10,000:1 with dynamic contrast
Screen size See option lens specifications
Colour reproducibility 10-bit colour processing
(approx. 1.07 billion colours)
Quietness
(ECO2 / ECO1 / Normal mode / Longlife)
43 dB / 45 dB / 47 dB / 55 dB
Scan rate Horizontal Analogue: 15 kHz, 24 to 100 kHz (24 kHz or greater for RGB inputs),
conforms to VESA standards
Digital: 15 kHz, 24 to 153 kHz, conforming to VESA standards
Vertical Analogue: 48 Hz, 50 to 85 Hz, 100, 120 Hz conforming to VESA standards
Digital: 24, 25, 30, 48 Hz, 50 to 85 Hz, 100, 120 Hz conforming to VESA standards
Max. display resolution
(horizontal × vertical)
Analogue: 1,920 × 1,200 (with Advanced AccuBlend) /
Digital: 4,096 × 2,160 (with Advanced AccuBlend)
Input / output connectors Computer / component Mini D-Sub 15-pin × 1, 5BNC × 1
HDMI® input terminals TypeA 19-pin HDMI® connector with HDCP × 1
HDMI® output terminal TypeA 19-pin HDMI® connector with HDCP × 1
HDBaseT™ RJ45 × 1
(IEEE 802.3 / 802.3u 10BASE-T / 100BASE-TX),
shared with Ethernet
DisplayPort™ DisplayPort 20-pin connector × 1
BNC (CV) BNC × 1 (shared with computer 5BNC)
BNC (Y/C) BNC × 2 (shared with computer 5BNC)
PC control connector D-Sub 9-pin × 1
GPIO D-sub 37-pin female × 1
USB port USB type A × 1
Ethernet port RJ-45 × 1,
(supports 100BASE-TX, shared with HDBaseT)
Remote connector Stereo mini jack × 1
3D SYNC output terminal 5 V / 10 mA, synchronized signal output for 3D use
Option slot OPS type × 1
Usage environment Operating temperature: 5 to 40 °C *5, operating humidity: 20 to 80 % (with no condensation)
Storage temperature: -10 to 50 °C, storage humidity: 20 to 80 % (with no condensation)
Operating altitude: 0 to 2,600 m
Power supply 200 to 240 V AC, 50/60 Hz
Power consumption Normal 1,392 W
ECO1 1,110 W
ECO2 752 W
Longlife 1,291 W
Standby (Normal) 1.83 W
Standby (HDBaseT) 5.7 W
Rated input current 9.2 A
Dimensions (W × H × D) 680 × 333 × 860 mm
(net dimensions, not including protruding parts)
Weight 68.0 kg (net weight, not including lens)
  • *1:Effective pixels are more than 99.99 %.
  • *2:Time at which the laser light source is at half brightness; not a guaranteed time.
  • *3:Light output value when the [PRESET] mode is set to [HIGH-BRIGHT] and the [LIGHT MODE ADJUST] is set to [100] while using the NP-9LS12ZM1 or NP9LS16ZM1.
  • *4:Compliant with ISO21118-2005.
  • *5:When surrounding temperature is 35-40 °C, [PRESET] becomes [ECO] mode automatically.

These specifications and the product’s design are subject to change without notice.

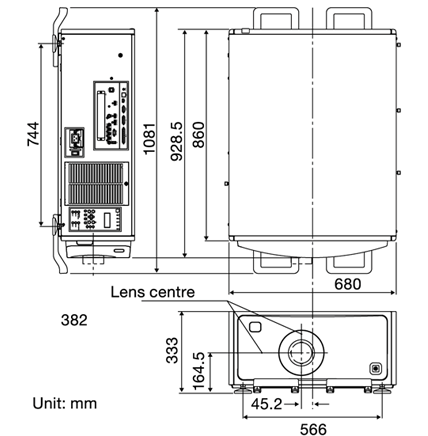

Cabinet dimensions

Cabinet dimensions

Lens specifications
Model name NP-9LS08ZM1 NP-9LS12ZM1 NP-9LS13ZM1 NP-9LS16ZM1 NP-9LS20ZM1 NP-9LS40ZM1
  NP-9LS08ZM1 NP-9LS12ZM1 NP-9LS13ZM1 NP-9LS16ZM1 NP-9LS20ZM1 NP-9LS40ZM1
Lens type Zoom Zoom Zoom Zoom Zoom Zoom
Zoom / Focus Power Power Power Power Power Power
Zoom ratio 1.5 1.43 1.58 1.67 1.87 1.56
F (Wide-tele) 2.5 - 3.0 2.5 2.5 2.5 2.5 2.5
f 13.3 - 19.9 mm 18.6 - 26.7 mm 20.7 - 32.7 mm 25.2 - 42.0 mm 32.2 - 60.3 mm 62.1 - 97.8 mm
Throw ratio (1080p) 0.90 - 1.35 1.27 - 1.82 1.41 - 2.23 1.71 - 2 .87 2.25 - 4.18 4.31 - 6.77
Screen size 70 - 600 100 - 500 100 - 500 100 - 500 100 - 500 60 - 500
Brightness 11,000 lm 12,000 im 11,700 lm 12,000 lm 11,800 lm 12,300 lm
Weight 2.25kg 2.36kg 2.34kg 2.36kg 2.28kg 1.7kg

Accessories

Remote control (Included accessory)

Remote Control

Options

Lenses
NP-9LS08ZM1
NP-9LS12ZM1
NP-9LS13ZM1
NP-9LS16ZM1
NP-9LS20ZM1
NP-9LS40ZM1

Boards   OPS single board controller (computer)

3G/HD/SD-SDI: SB-04HC
HD/SD-SDI: SB-01HC
  N8000-8865 / N8000-8866
N8000-8830 / N8000-8822

For more information

Download Brochure
