Functions and Features

Advanced Installation Capabilities

No More Lamp Replacements

Up to 20,000 hours* of maintenance-free operation is possible due to the laser light source.

• *Actual hours may vary depending on usage conditions.

Dustproof Design Supported by Closed-loop Cooling

The projector has a dustproof design to prevent the staining of optical components from the ingress of dust and the deterioration of brightness and image quality.

Tilt-free and Portrait Installation Support

The projector can be rotated freely (360°) to point up or down depending on the installation requirements and can be rotated (along with the screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the sides when landscape mode is used.

Geometric Correction

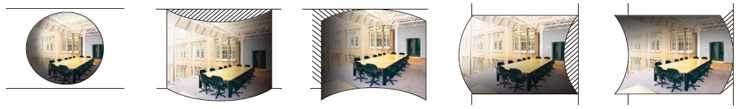

Projection is not confined to a standard flat screen or wall. Geometric correction allows this model to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.

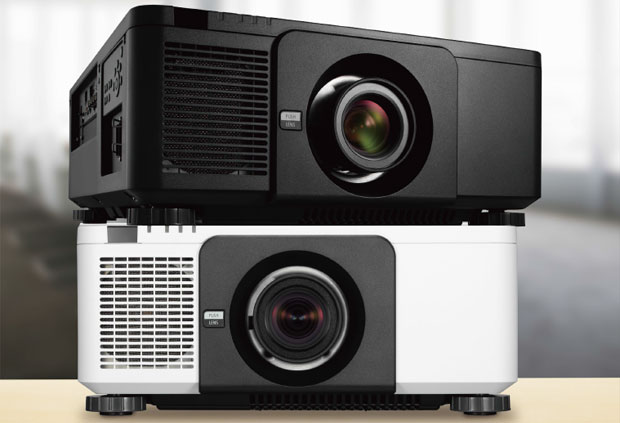

Stacking Correction

This feature allows the projectors to boost an image’s brightness up to 32,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Built-in Edge Blending

Multiscreen Function

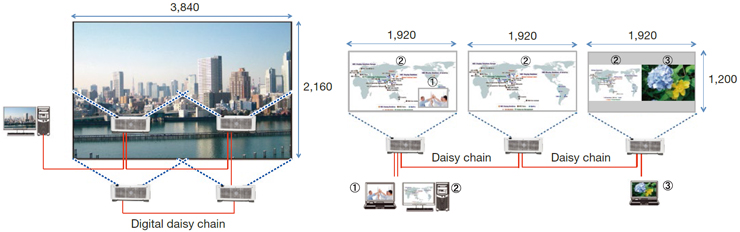

Multi-display capabilities and tiling technologies are integrated into the PX803UL. This projector is also equipped with multiple digital input and HDMI output terminals that can connect multiple projectors in a digital daisy chain. These cutting-edge functions produce a beautiful highresolution image, including a 4K / 2K high-resolution display using 4 projectors and various picture in picture / picture by picture configurations.

Easy Installation

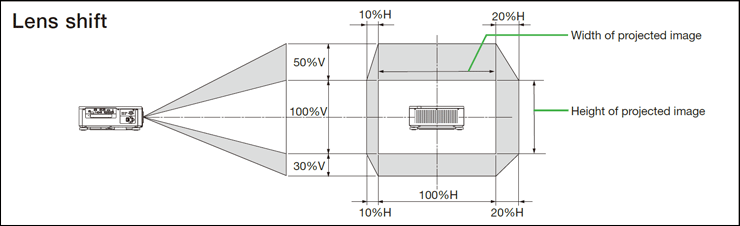

A selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantee hassle-free installation and replacement of existing installation projectors.

• *1:[PRESET] mode is [HIGH-BRIGHT]

Fantastic Cinema Quality Picture

Equipped with NEC's NV1301 4,096 × 2,160 Scaler Chip and the 3rd-generation Sweetvision™ Circuit

Compatible with Diverse Signal Sources

Built-in HDBaseT Support

Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labour costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What is more, control signals are contained in the same cable.

Wide Selection of Inputs and Outputs Such as HDMI and DisplayPort

The projector is equipped with a wide range of input / output terminals and compatible with a variety of image sources, which lets you connect HDMI, DisplayPort, computer (analog), 5-core BNC, and video sources.

Expansion Slot

The slot technology allows for the integration of Open Pluggable Specification (OPS*) boards and other option slot products without the need to store additional external equipment. This offers the greater flexibility customers require.

• *OPS is a standard established by Intel Corporation.

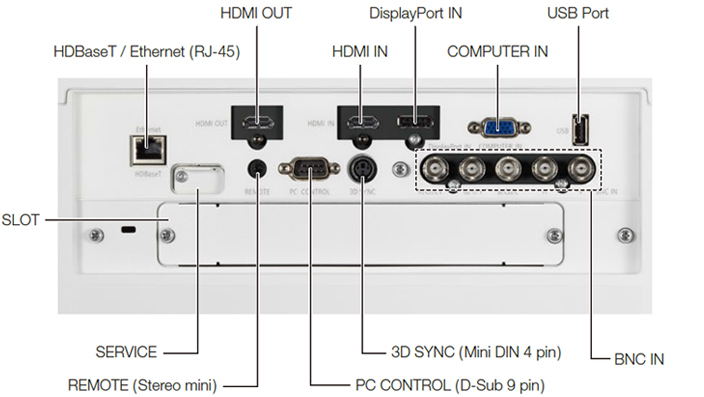

Terminals

Other Useful Functions and Features

• Lens shutter
• Program timer with real time clock / off timer
• Remote control ID
• Silent design for 35 dB in ECO mode
• Direct power on/off, auto power on/off
• PIN security / control panel lock / security bar / security slot

Network Control

Specifications

Model			NP-PX803UL-WH	NP-PX803UL-BK
Method			Reflection by single DMD chip
Specifications of main parts
	Main panel	Size Pixels*1	0.67" 2 × LVDS ( aspect ratio: 16:10 ) 2,304,000 ( 1,920 dots × 1,200 lines)
	Projection lenses	Zoom Focus Lens shifting	Power-adjustable
	Light source		Blue laser diode
	Light source ( laser diode) life*2		20,000 hours
	Optical unit		C / W type ( DLP), colour separation by colour wheel; time-multiplexing colour wheel method
Light output *3*4		Normal mode	8,000 lumens
		ECO1 / ECO2	Approx. 80% / Approx. 50%
Contrast ratio*4 (all white / all black)			10,000:1 with dynamic contrast
Screen size			50" to 300", 100" to 350" ( NP39ML)
Colour reproducibility			10-bit colour processing ( approx. 1.07 billion colours)
Quietness ( ECO2 / ECO1 / Normal mode)			35 dB / 37 dB / 40 dB
Scan rate		Horizontal	Analog: 15 kHz, 24 to 100 kHz ( 24 kHz or greater for RGB inputs) / Digital: 15 kHz, 24 to 153 kHz
		Vertical	Analog: 48 Hz, 50 to 85 Hz, 100 Hz, 120 Hz / Digital: 24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 to 85 Hz, 100 Hz, 120 Hz
Max. display resolution ( horizontal × vertical )			Analog: 1,920 × 1,200 ( with Advanced AccuBlend) / Digital: 4,096 × 2,160 ( with Advanced AccuBlend)
Input / output connectors
	Computer / component	Video input	Mini D-Sub 15-pin × 1, 5BNC × 1
	HDMI® input terminals	Video input	Type A 19-pin HDMI® connector with HDCP ( V1.4 ) × 1
		Audio input	Yes
	HDMI® output terminal	Video output	Type A 19-pin HDMI® connector with HDCP ( V1.4 ) × 1
		Audio output	Yes
	HDBaseT™	Video input	RJ45 × 1 ( IEEE 802.3 / 802.3u 10BASE-T / 100BASE-TX), shared with Ethernet
		Audio input	Yes
	DisplayPort™	Video input	DisplayPort 20-pin connector × 1
		Audio input	Yes
	BNC ( CV)	Video input	BNC × 1
	BNC ( Y/C)	Video input	BNC × 2
	PC control connector		D-Sub 9-pin × 1
	USB port		USB type A × 1
	Ethernet port		RJ-45 × 1, ( supports 100BASE-TX), shared with HDBaseT
	Remote connector		Stereo mini jack × 1
	3D SYNC output terminal		5 V / 10 mA, synchronized signal output for 3D use
	Option slot		OPS type × 1
Usage environment*5			Operating temperature: 5 to 40°C*6, operating humidity: 0 to 80% (with no condensation) Storage temperature: –10 to 60°C, storage humidity: 0 to 90% (with no condensation) Operating altitude: 0 to 3,000 m
Power supply			100 – 240 V AC, 50 / 60 Hz
Power consumption	Normal		874 W ( 100 – 130 V) / 850 W ( 200 – 240 V)
	ECO1		695 W (100 – 130 V) / 680 W ( 200 – 240 V)
	ECO2		456 W ( 100 – 130 V) / 446 W ( 200 – 240 V)
	STANDBY ( NORMAL)		Less than 0.27 W
	STANDBY ( NETWORK)		Less than 4.4 W
Rated input current			9.4 – 3.8 A
Cabinet colour			White : -WH, Black : -BK
Dimensions ( W × H× D)			500 × 216 × 583 mm ( not including lens) 500 × 211 × 577 mm ( not including protruding parts)
Weight			28.0 kg ( not including lens)

• *1:Effective pixels are more than 99.99%.
• *2:Time at which the laser light source is at half brightness; not a guarantee time.
• *3:This is the light output value that results from setting the [LIGHT MODE] to [NORMAL] and setting the [PRESET] to [HIGH-BRIGHT] while using the NP18ZL lens (sold separately).
• *4:Compliant with ISO21118-2012.
• *5:Depending on the altitude and temperature, the projector goes into “Forced ECO MODE”.
• *6:10 to 40°C while using the NP39ML

These specifications and the product’s design are subject to change without notice.

Throw Distance and Screen Size

Unit: m

• *Stated projection distances are standard values from lens or mirror surface to screen centre.
• *For a stack installation, the recommended projection distances will be different.
• *The values in the table are design values and may vary.

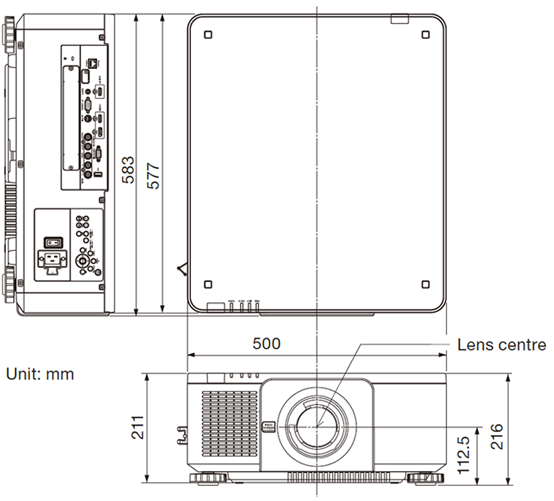

Cabinet Dimensions

Accessories

Remote control (included accessory)

Options

Lenses
NP39ML (Throw Ratio 0.38)
NP16FL (Throw Ratio 0.76)
NP31ZL (Throw Ratio 0.75-0.93)
NP17ZL (Throw Ratio 1.25-1.79)
NP18ZL (Throw Ratio 1.73-2.27)
NP19ZL (Throw Ratio 2.22-3.67)
NP20ZL (Throw Ratio 3.58-5.38)
NP21ZL (Throw Ratio 5.31-8.26)

Slot boards

SDI SB-04HC (3G/HD/SD-SDI)	OPS single board controller (computer) N8000-8866 (Core i5 60GB-SSD) N8000-8865 (Core i5 320GB-HDD)

• *Do not stare into the lens while in use.
• *The laser module is equipped in this product.
  This product is classified as Class 1 of IEC60825-1 Third edition 2014-05, Class 3R of IEC60825-1 Second edition 2007-03 and RG2 of IEC62471-1 : 2006.
• *The projector can be unplugged during its cool down period after it is turned off.
  Parts of the projector become heated during operation.
  Use caution when picking up the projector immediately after it has been operating.
