V302H / V332W / V302X

Compact size in combination with light weight makes the V Series easy to place wherever you need it.

The excellent price performance ratio makes these projectors especially suitable for classrooms and mid-sized meeting rooms.

V302H / V332W / V302W / V332X / V302X

DLP Medalion

NaViSetHDMI MHL

V302H

Benefits

  • Great picture quality
    Thanks to various resolutions and 10,000:1 contrast.
  • Innovative ECO functions
    Reduce power consumption while ensuring optimal image performance.
  • Future proof connectivity
    Numerous analog and digital connection terminals, including MHL support* and network capability.
    • * V302H / V332W / V332X
  • 3D ready
    For playback of engaging 3D applications and movies.
  • Free download of multi-display management software

Specifications

  NP-V302H
Projection System Single DLP® (0.65")
Resolution*1 1,920 × 1,080 (Full HD)
Lens Manual zoom (×1.2) / Manual focus,
F= 2.55 - 2.85, f= 22.41 - 26.82 mm,
Throw ratio = 1.50 - 1.80
Light source (Lamp) ECO mode 170 W
ECO mode off 218 W
Lamp life*2 ECO mode 6,000 H
ECO mode off 3,500 H
Image size 40 to 300 inches
Light output *3 *4 ECO mode off 3,000 lumens
ECO mode Approx. 80 % of ECO off
Contrast ratio (white/black)*4 10,000:1 with lamp control
Maximum resolution Up to 1080p (1,920 x 1,080)
Synchronization range Horizontal 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical 50 Hz to 120 Hz (24 Hz: Blu-ray 24P)
Keystone correction Horizontal Manual : ± Max 30 degrees
Vertical Manual : ± Max 30 degrees
Input terminals Computer Mini D-sub 15 pin × 1
  Audio Stereo mini jack × 1
Video RCA × 1
  Audio (L/R) RCA × 1
HDMI HDMI × 2
(HDMI1 supports MHL function)
Output terminals Mini D-sub 15 pin × 1
    Audio Stereo mini jack × 1
Wired LAN port RJ- 45 (10BASE-T / 100BASE-TX) × 1
Control terminals D-sub 9 pin × 1
USB port Service × 1
Built-in speaker 8 W monaural
Usage environment Operational temperature 5 °C to 40 °C, up to 80 % humidity (no condensation)
Storage temperature -10 °C to 50 °C, up to 80 % humidity (no condensation)
Power requirements 100 to 240 V AC, 50 Hz / 60 Hz
Input current 2.8 A to 1.2 A
Power consumption
(100 to 130 V AC /
200 to 240 V AC)
ECO mode off 280 W / 266 W
ECO mode 217 W / 207 W
Standby (Network) 1.1 W / 1.3 W
Standby (Normal) 0.22 W / 0.35 W
Net dimensions (W × H × D) 324 × 88 × 250 mm (not including protrusions)
Weight 2.9 kg
Gross dimensions (W × H × D) 510 × 210 × 310 mm
Gross weight 4.8 kg
Accessories Power cord, remote control, batteries, signal cable, CD-ROM (User’s manual), quick guide, important information, lens cap, security sticker
  NP-V332W NP-V302W
Projection System Single DLP® (0.65")
Resolution*1 1,280 × 800 (WXGA)
Lens Manual zoom (×1.1) / Manual focus,
F= 2.50 - 2.67, f= 21.8 - 24.0 mm,
Throw ratio = 1.55 - 1.70
Light source (Lamp) ECO mode 170 W 160 W
ECO mode off 218 W 195 W
Lamp life*2 ECO mode 6,000 H 6,000 H
ECO mode off 3,500 H 4,500 H
Image size 30 to 300 inches
Light output *3 *4 ECO mode off 3,300 lumens 3,000 lumens
ECO mode Approx. 80 % of ECO off
Contrast ratio (white/black)*4 10,000:1 with lamp control
Maximum resolution Up to 1080p (1,920 x 1,080)
Synchronization range Horizontal 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical 50 Hz to 120 Hz (24 Hz: Blu-ray 24P)
Keystone correction Horizontal Manual : ± Max 30 degrees -
Vertical Manual : ± Max 30 degrees Manual : ± Max 40 degrees
Input terminals Computer Mini D-sub 15 pin × 1
  Audio Stereo mini jack × 1
Video RCA × 1
  Audio (L/R) RCA × 1
HDMI HDMI × 2
(HDMI1 supports MHL function)
HDMI × 2
Output terminals Mini D-sub 15 pin × 1
    Audio Stereo mini jack × 1
Wired LAN port RJ- 45 (10BASE-T / 100BASE-TX) × 1
Control terminals D-sub 9 pin × 1
USB port Service × 1
Built-in speaker 8 W monaural
Usage environment Operational temperature 5 °C to 40 °C, up to 80 % humidity (no condensation)
Storage temperature -10 °C to 50 °C, up to 80 % humidity (no condensation)
Power requirements 100 to 240 V AC, 50 Hz / 60 Hz
Input current 2.8 A to 1.1 A 2.5 A to 1.0 A
Power consumption
(100 to 130 V AC /
200 to 240 V AC)
ECO mode off 277 W / 263 W 249 W / 237 W
ECO mode 215 W / 204 W 205 W / 194 W
Standby (Network) 1.0 W / 1.3 W 1.0 W / 1.3 W
Standby (Normal) 0.22 W / 0.35 W 0.23 W / 0.38 W
Net dimensions (W × H × D) 324 × 88 × 250 mm (not including protrusions)
Weight 2.8 kg 2.7 kg
Gross dimensions (W × H × D) 510 × 210 × 310 mm
Gross weight 4.6 kg 4.6 kg
Accessories Power cord, remote control, batteries, signal cable, CD-ROM (User’s manual), quick guide, important information, lens cap, security sticker
  NP-V332X NP-V302X
Projection System Single DLP® (0.55")
Resolution*1 1,024 × 768 (XGA)
Lens Manual zoom (×1.1) / Manual focus,
F= 2.41 - 2.55, f= 21.8 - 24.0 mm,
Throw ratio = 1.95 - 2.15
Light source (Lamp) ECO mode 170 W 160 W
ECO mode off 218 W 195 W
Lamp life*2 ECO mode 6,000 H 6,000 H
ECO mode off 3,500 H 4,500 H
Image size 30 to 300 inches
Light output *3 *4 ECO mode off 3,300 lumens 3,000 lumens
ECO mode Approx. 80 % of ECO off
Contrast ratio (white/black)*4 10,000:1 with lamp control
Maximum resolution Up to 1080p (1,920 x 1,080)
Synchronization range Horizontal 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical 50 Hz to 120 Hz (24 Hz: Blu-ray 24P)
Keystone correction Horizontal Manual : ± Max 30 degrees -
Vertical Manual : ± Max 30 degrees Manual : ± Max 40 degrees
Input terminals Computer Mini D-sub 15 pin × 1
  Audio Stereo mini jack × 1
Video RCA × 1
  Audio (L/R) RCA × 1
HDMI HDMI × 2
(HDMI1 supports MHL function)
HDMI × 2
Output terminals Mini D-sub 15 pin × 1
    Audio Stereo mini jack × 1
Wired LAN port RJ- 45 (10BASE-T / 100BASE-TX) × 1
Control terminals D-sub 9 pin × 1
USB port Service × 1
Built-in speaker 8 W monaural
Usage environment Operational temperature 5 °C to 40 °C, up to 80 % humidity (no condensation)
Storage temperature -10 °C to 50 °C, up to 80 % humidity (no condensation)
Power requirements 100 to 240 V AC, 50 Hz / 60 Hz
Input current 2.7 A to 1.1 A 2.5 A to 1.0 A
Power consumption
(100 to 130 V AC /
200 to 240 V AC)
ECO mode off 275 W / 263 W 251 W / 237 W
ECO mode 213 W / 204 W 206 W / 198 W
Standby (Network) 1.0 W / 1.3 W 1.1 W / 1.3 W
Standby (Normal) 0.23 W / 0.35 W 0.22 W / 0.37 W
Net dimensions (W × H × D) 324 × 88 × 250 mm (not including protrusions)
Weight 2.8 kg 2.7 kg
Gross dimensions (W × H × D) 510 × 210 × 310 mm
Gross weight 4.6 kg 4.6 kg
Accessories Power cord, remote control, batteries, signal cable, CD-ROM (User’s manual), quick guide, important information, lens cap, security sticker
  • *1:Effective pixels are more than 99.99%.
  • *2:The average time span for the brightness of the lamp to be reduced by half; does not refer to the warranty period for the lamp.
  • *3:This is the light output value (lumens) when the [PICTURE MODE] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PICTURE MODE] mode, the light output value may drop slightly.
  • *4:Compliant with ISO21118-2012

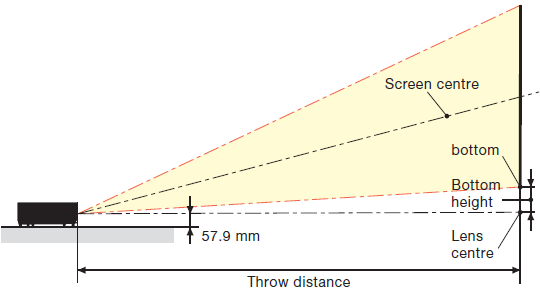

Throw distance and screen size

Throw Distance and Screen Size

V302H (Aspect ratio 16:9)
Screen Size
(W×H m)
Throw Distance (m) Bottom Height
(cm)
Wide Tele
40" (0.89×0.50) 1.33 1.59 8.2
60" (1.33×0.75) 1.99 2.39 12.3
80" (1.77×1.00) 2.66 3.19 16.4
100" (2.21×1.25) 3.32 4.00 20.5
120" (2.66×1.49) 4.00 4.78 24.6
150" (3.32×1.87) 4.98 5.98 30.7
180" (3.99×2.24) 6.00 7.17 36.8
200" (4.43×2.49) 6.64 7.97 40.9
240" (5.31×2.99) 7.97 9.56 49.1
300" (6.64×3.74) 9.96 11.96 61.4
V332W / V302W (Aspect ratio 16:10)
Screen Size
(W×H m)
Throw Distance (m) Bottom Height
(cm)
Wide Tele
30" (0.65×0.40) 1.00 1.10 5.1
40" (0.86×0.54) 1.34 1.47 6.8
60" (1.29×0.81) 2.00 2.20 10.2
80" (1.72×1.08) 2.67 2.93 13.6
100" (2.15×1.35) 3.34 3.66 17.1
120" (2.59×1.62) 4.01 4.39 20.5
150" (3.23×2.02) 5.01 5.49 25.6
180" (3.88×2.42) 6.01 6.59 30.7
200" (4.31×2.69) 6.68 7.32 34.1
240" (5.17×3.23) 8.01 8.79 40.9
300" (6.46×4.04) 10.02 10.99 51.2
V332X / V302X (Aspect ratio 4:3)
Screen Size
(W×H m)
Throw Distance (m) Bottom Height
(cm)
Wide Tele
30" (0.61×0.46) 1.19 1.31 6.9
40" (0.81×0.61) 1.59 1.75 9.1
60" (1.22×0.91) 2.38 2.62 13.7
80" (1.63×1.22) 3.17 3.50 18.3
100" (2.03×1.52) 3.96 4.37 22.8
120" (2.44×1.83) 4.75 5.24 27.4
150" (3.05×2.29) 5.94 6.55 34.3
180" (3.66×2.74) 7.13 7.86 41.1
200" (4.06×3.05) 7.92 8.74 45.7
240" (4.88×3.66) 9.51 10.49 54.8
300" (6.10×4.57) 11.89 13.11 68.5

The values in the tables are design values and may vary.

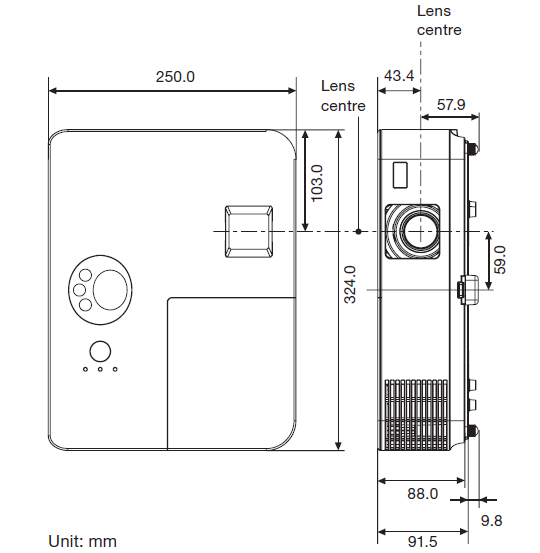

Cabinet Dimensions

Cabinet Dimensions

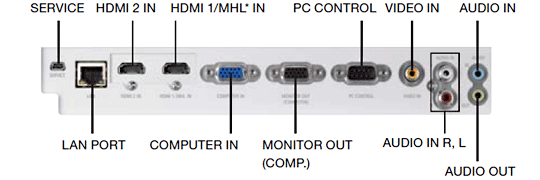

Terminals

Terminals

Accessory

Included accessories

Remote control

Remote control

Options
Replacement lamp   3D goggles
NP35LP NP36LP NP02GL
NP35LP
(V302H)
(V332W)
(V332X)
NP36LP
(V302W)
(V302X)
NP02GL
