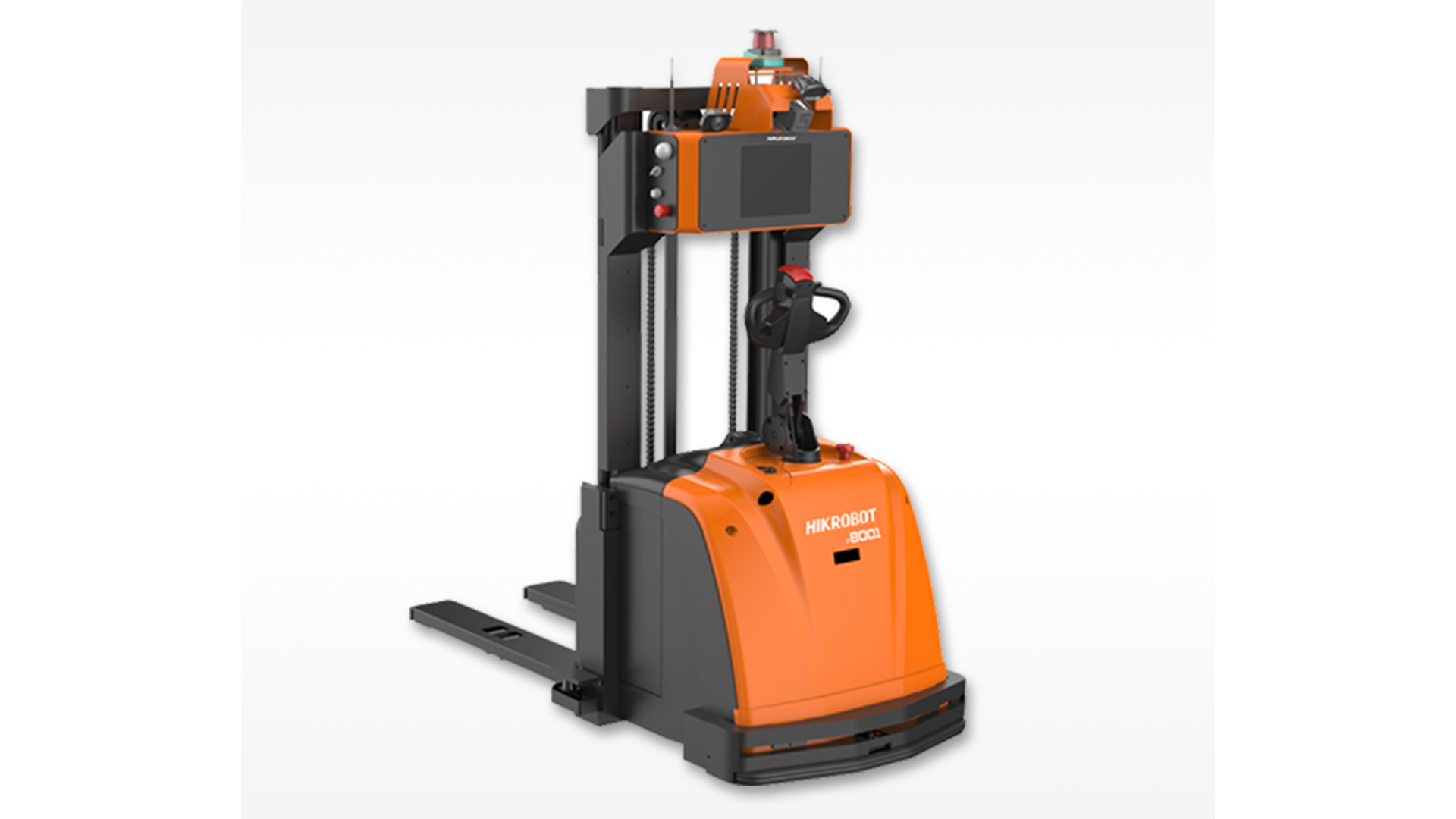

Standard vehicle body and pallet carrying
Supports customized level 2 & 3 gantry and fork dimension. The maximum gantry height is 4 m.
Adopts laser slam navigation to achieve accurate positioning
Adopts smooth motion control and max. speed of 1.5 m/s
Supports battery management system and auto charging in low battery level
Multi-safety protection: laser and infrared obstacle avoidance, loading detection, bumper strip, scram button and sound alarm
Standard pallet carrying (800 x 1000, 1000 x 1200): supports carrying and lifting of goods within the weight of 2000 kg.
Adopts display screen and indicator to show device status in real time
Supports wireless communication and roaming in network covered area

	Index	Parameter
Basic Parameters
	Dimension	2211 mm x 1068 mm x 2190 mm
	Weight (with battery)	1410 kg
	Rated load	2000 kg
	Load center distance	600 mm
	Min. ground clearance	600 mm
	Driving wheel dimension	Φ 230 mm x 75 mm
	Wheelbase	1293 mm
	Fork-ground distance	85 mm
	Fork dimension	55 mm x 180 mm x 1150 mm
	Fork outer width	570 mm/680 mm
	Applicable pallet dimension	1200 mm x 1000 mm
Motion Performance
	Rated operating speed	0 mm/s to 1500 mm/s
	Operating accuracy	± 10 mm
	Repeated positioning accuracy	± 5 mm
	Max. climbing gradient	5 % (rated load)/8 % (empty load)
	Fork lifting speed	90 mm (rated load)/120 mm (empty load)
	Fork descending speed	120 mm (rated load)/110 mm (empty load)
	Min. turning radius	1780 mm
	Min. aisle width	2750 mm
Battery
	Rated voltage	24 V
	Capacity	200 Ah
	Charge cycle	1500 times in full charging/ discharging
	Endurance	6 h to 8 h
	Charge time	≤ 3 h (60 A current)
	Charge board installation	3-electrode at side
Other Parameters
	Driving	Front-wheel driving and turning
	Navigation	Laser slam
	Working noise	< 75 dB
	Manual operation	Supports
Safety performance
	Laser obstacle avoidance	Four sides
	Bumper strip/fork infrared	Supports
	Pallet in-position detection	Supports
	Goods detection/scram button	Supports
	Sound and light alarm	Supports
