PX1004UL-WH / PX1004UL-BK

Powerful installation projector with a laser-phosphor light source

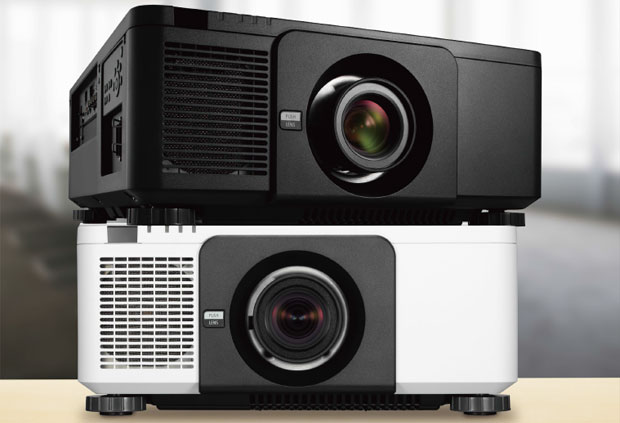

Projector PX1004UL-WH / PX1004UL-BK

DLP MedalionNaViSet HDBaseT HDMI DisplayPort

The NEC PX1004UL offers all the benefits of the most up to date laser light source and professional installation features.

PX1004UL 10,000 lumens WUXGA 29.0 kg

Functions and Features

Advanced Installation Capabilities
No More Lamp Replacements

Up to 20,000 hours* of maintenance-free operation is possible due to the laser light source.

  • *Actual hours may vary depending on usage conditions.
Dustproof Design Supported by Closed-loop Cooling

The projector has a dustproof design to prevent the staining of optical components from the ingress of dust and the deterioration of brightness and image quality.

Tilt-free and Portrait Installation Support

The projector can be rotated freely (360°) to point up or down depending on the installation requirements and can be rotated (along with the screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the sides when landscape mode is used.

Tilt-free and Portrait Installation Support

Geometric Correction

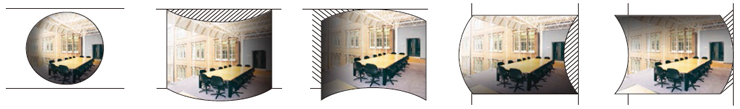

Projection is not confined to a standard flat screen or wall. Geometric correction allows this model to project an image on spheres, cylinders, corner angles and many more non-standard surfaces.

Geometric Correction

Stacking Correction

This feature allows the projectors to boost an image’s brightness up to 40,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Built-in Edge Blending

Built-in Edge Blending

This function seamlessly blends multiple projected images to display a single high- resolution image.

Multiscreen Function

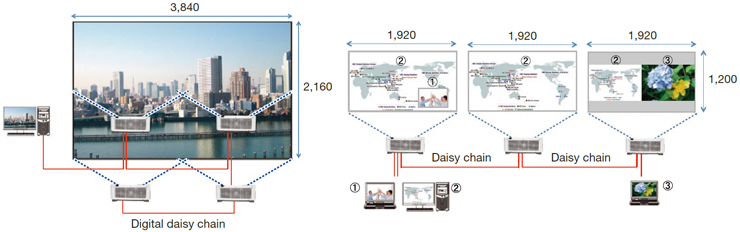

Multi-display capabilities and tiling technologies are integrated. The projector is also equipped with multiple digital input and HDMI　output terminals that can connect multiple projectors in a digital daisy　chain. These cutting-edge functions produce a beautiful highresolution　image, including a 4K / 2K high-resolution display using 4　projectors and various picture in picture / picture by picture configurations.

Multiscreen Function

Easy Installation

A selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantee hassle-free installation and replacement of existing installation projectors.

Easy Installation

  NP39ML NP16FL NP31ZL NP17ZL NP18ZL NP19ZL NP20ZL NP21ZL
Option lens NP39ML NP16FL NP31ZL NP17ZL NP18ZL NP19ZL NP20ZL NP21ZL
Lens type Fixed ultra-short mirror lens Fixed short throw lens Zoom lens
Zoom/Focus Powered focus Powered zoom and focus
Zoom ratio - 1.25 1.41 1.31 1.65 1.5 1.55
Throw Ratio 0.38 : 1 0.76 : 1 0.75 - 0.93 : 1 1.25 - 1.79 : 1 1.73 - 2.27 : 1 2.22 - 3.67 : 1 3.58 - 5.38 : 1 5.31 - 8.26 : 1
F 2.0 1.85 1.96 - 2.30 1.85 - 2.50 1.64 - 1.86 1.86 - 2.48 1.85 - 2.40 1.85 - 2.48
f (mm) 5.64 11.6 11.3 - 14.1 18.7 - 26.5 25.7 - 33.7 32.91 - 54.23 52.8 - 79.1 78.5 - 121.9
Screen size 100 - 350 inches 50 - 300 inches
Light output *1 7,700 lumens 9,300 lumens 8,700 lumens 9,100 lumens 10,000 lumens 9,200 lumens 8,700 lumens 8,700 lumens
Lens Shift Vertical - 0 +0.5V / -0.3H

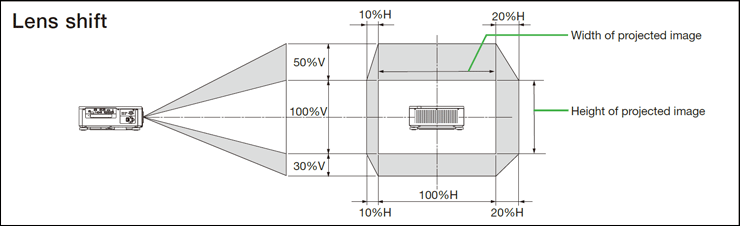

Horizontal - 0 0.1H and other side 0.2H ( refer to the image)
Weight 2.7 kg 0.9 kg 1.3 kg 1.1 kg 0.8 kg 1.0 kg 1.0 kg 1.35 kg
  • *1:[PRESET] mode is [HIGH-BRIGHT]
Fantastic Cinema Quality Picture
Equipped with NEC's NV1301 4,096 × 2,160 Scaler Chip and the 3rd-generation Sweetvision™ Circuit

This 10-bit video processor represents an enormous leap in video processing, with true flagship performance in noise reduction, de-interlacing and scaling.

  • 4K Ultra HD support (4,096 × 2,160 / 3,840 × 2,160)
  • 12-bit gamma correction
  • Advanced colour correction (6-axis saturation and hue adjustment / skin tone)
  • Video and film cadence detection (multi cadence)
  • Per-pixel motion adaptive de-interlacing
  • Detail enhancement
  • Super resolution correction (3rd-generation Sweetvison™)
  • 3D random, mosquito and block noise reduction

Equipped with NEC's NV1301 4,096 × 2,160 Scaler Chip and the 3rd-generation Sweetvision™ Circuit

Compatible with Diverse Signal Sources
Built-in HDBaseT Support

Simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed Full HD digital video, audio, Ethernet, and various control signals. With only a single cable (up to 100 m) to run, infrastructure and labour costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What is more, control signals are contained in the same cable.

HDBaseT

Wide Selection of Inputs and Outputs Such as HDMI and DisplayPort

The projector is equipped with a wide range of input / output terminals and compatible with a variety of image sources, which lets you connect HDMI, DisplayPort, computer (analog), 5-core BNC, and video sources.

HDMI DisplayPort

Expansion Slot

The slot technology allows for the integration of Open Pluggable Specification (OPS*) boards and other option slot products without the need to store additional external equipment. This offers the greater flexibility customers require.

  • *OPS is a standard established by Intel Corporation.
Terminals

Terminals

Other Useful Functions and Features
  • Lens shutter
  • Program timer with real time clock / off timer
  • Remote control ID
  • Direct power on/off, auto power on/off
  • PIN security / control panel lock / security bar / security slot
Network Control

NaViSet Administrator 2 / PC control / alert mail / CRESTRON ROOMVIEW™ / AMX BEACON / PJLink / HTTP server (projector adjustment)

NaViSet Administrator 2

Specifications

Model NP-PX1004UL-WH / NP-PX1004UL-BK
Method Reflection by single DMD chip
Specifications of main parts
  Main panel Size Pixels*1 0.67" 2 × LVDS ( aspect ratio: 16:10 )
2,304,000 ( 1,920 dots × 1,200 lines)
Projection lenses Zoom
Focus
Lens shifting		 Power-adjustable
Light source Blue laser diode
Light source ( laser diode) life*2 20,000 hours
Optical unit C / W type ( DLP), colour separation by colour wheel;
time-multiplexing colour wheel method
Light output *3*4 Normal mode 10,000 lumens
ECO1 / ECO2 Approx. 80% / Approx. 50%
Contrast ratio*4 (all white / all black) 10,000:1 with dynamic contrast
Screen size 50" to 300", 100" to 350" ( NP39ML)
Colour reproducibility 10-bit colour processing ( approx. 1.07 billion colours)
Quietness ( ECO2 / ECO1 / Normal mode) 37 dB / 39 dB / 42 dB
Scan rate Horizontal Analog: 15 kHz, 24 to 100 kHz ( 24 kHz or greater for RGB inputs) /
Digital: 15 kHz, 24 to 153 kHz
Vertical Analog: 48 Hz, 50 to 85 Hz, 100 Hz, 120 Hz /
Digital: 24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 to 85 Hz, 100 Hz, 120 Hz
Max. display resolution ( horizontal × vertical ) Analog: 1,920 × 1,200 ( with Advanced AccuBlend) /
Digital: 4,096 × 2,160 ( with Advanced AccuBlend)
Input / output connectors
  Computer / component Video input Mini D-Sub 15-pin × 1, 5BNC × 1
HDMI®
input terminals		 Video input Type A 19-pin HDMI® connector with HDCP ( V1.4 ) × 1
Audio input Yes
HDMI®
output terminal		 Video output Type A 19-pin HDMI® connector with HDCP ( V1.4 ) × 1
Audio output Yes
HDBaseT™ Video input RJ45 × 1 ( IEEE 802.3 / 802.3u 10BASE-T / 100BASE-TX),
shared with Ethernet
Audio input Yes
DisplayPort™ Video input DisplayPort 20-pin connector × 1
Audio input Yes
BNC ( CV) Video input BNC × 1
BNC ( Y/C) Video input BNC × 2
PC control connector D-Sub 9-pin × 1
USB port USB type A × 1
Ethernet port RJ-45 × 1, ( supports 100BASE-TX), shared with HDBaseT
Remote connector Stereo mini jack × 1
3D SYNC output terminal 5 V / 10 mA, synchronized signal output for 3D use
Option slot OPS type × 1
Usage environment*5 Operating temperature: 5 to 40°C*6, operating humidity: 0 to 80%
(with no condensation)
Storage temperature: –10 to 60°C, storage humidity: 0 to 90%
(with no condensation)
Operating altitude: 0 to 3,000 m
Power supply 110 – 240 V AC, 50 / 60 Hz
Power consumption Normal 1220 W ( 110 – 130 V) / 1165 W ( 200 – 240 V)
ECO1 980 W (110 – 130 V) / 930 W ( 200 – 240 V)
ECO2 625 W ( 110 – 130 V) / 605 W ( 200 – 240 V)
STANDBY ( NORMAL) Less than 0.3 W
STANDBY ( NETWORK) Less than 4.5 W
Rated input current 11.6 – 5.2 A
Cabinet colour White : -WH, Black : -BK
Dimensions ( W × H× D) 500 × 216 × 583 mm ( not including lens)
500 × 211 × 577 mm ( not including protruding parts)
Weight 29.0 kg ( not including lens)
  • *1:Effective pixels are more than 99.99%.
  • *2:Time at which the laser light source is at half brightness; not a guarantee time.
  • *3:This is the light output value that results from setting the [LIGHT MODE] to [NORMAL] and setting the [PRESET] to [HIGH-BRIGHT] while using the NP18ZL lens (sold separately).
  • *4:Compliant with ISO21118-2012.
  • *5:Depending on the altitude and temperature, the projector goes into “Forced ECO MODE”.
  • *6:10 to 40°C while using the NP39ML

These specifications and the product’s design are subject to change without notice.

Throw Distance and Screen Size

Unit: m

Screen size
( W × H)		 Lens model name
NP39ML NP16FL NP31ZL NP17ZL NP18ZL NP19ZL NP20ZL NP21ZL
50"
( 1.08 × 0.64 )		 – 0.8 0.8-1.0 1.3-1.9 1.8-2.4 2.4-4.0 3.8-5.8 5.6-8.9
60"
( 1.29 × 0.81 )		 – 1 1.0-1.2 1.6-2.3 2.2-2.9 2.8-4.8 4.6-7.0 6.8-10.7
80"
( 1.72 × 1.08 )		 – 1.3 1.3-1.6 2.2-3.1 3.0-3.9 3.8-6.4 6.2-9.3 9.1-14.4
100"
( 2.15 × 1.35 )		 0.8 1.7 1.6-2.0 2.7-3.9 3.7-4.9 4.8-8.0 7.7-11.7 11.5-18.1
120"
( 2.59 × 1.62 )		 1 2 2.0-2.5 3.3-4.7 4.5-5.9 5.8-9.6 9.3-14.1 13.8-21.7
150"
( 3.23 × 2.02 )		 1.2 2.5 2.5-3.1 4.1-5.8 5.6-7.4 7.2-12.0 11.7-17.6 17.4-27.3
200"
( 4.31 × 2.69 )		 1.6 3.4 3.3-4.1 5.5-7.8 7.5-9.9 9.7-16.1 15.6-23.5 23.3-36.4
240"
( 5.17 × 3.23 )		 1.9 4.1 4.0-5.0 6.6-9.4 9.1-11.9 11.6-19.3 18.8-28.3 28.0-43.8
300"
( 6.46 × 4.04 )		 2.3 5.1 5.0-6.2 8.2-11.7 11.3-14.9 14.5-24.1 23.5-35.4 35.0-54.8
  • *Stated projection distances are standard values from lens or mirror surface to screen centre.
  • *For a stack installation, the recommended projection distances will be different.
  • *The values in the table are design values and may vary.

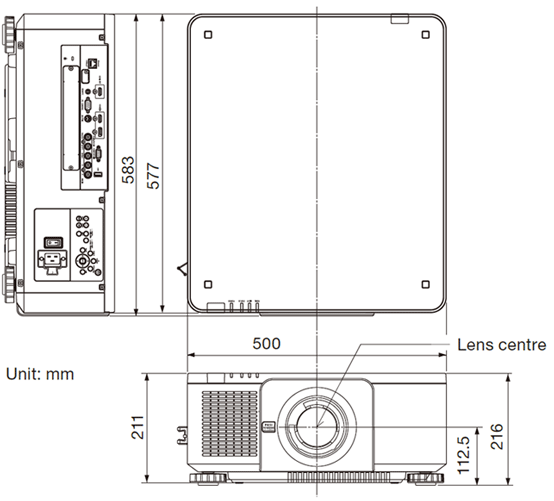

Cabinet Dimensions

Cabinet dimensions

Accessories

Remote control (included accessory)

Remote Control

Options
Lenses
NP39ML (Throw Ratio 0.38)
NP16FL (Throw Ratio 0.76)
NP31ZL (Throw Ratio 0.75-0.93)
NP17ZL (Throw Ratio 1.25-1.79)
NP18ZL (Throw Ratio 1.73-2.27)
NP19ZL (Throw Ratio 2.22-3.67)
NP20ZL (Throw Ratio 3.58-5.38)
NP21ZL (Throw Ratio 5.31-8.26)

Slot boards


SDI
SB-04HC (3G/HD/SD-SDI)		   OPS single board controller (computer)
N8000-8866 (Core i5 60GB-SSD)
N8000-8865 (Core i5 320GB-HDD)
  • *Do not stare into the lens while in use.
  • *The laser module is equipped in this product.
    The PX1004UL is categorized in the risk group 2 of IEC62471-5: 2015.
  • *The projector can be unplugged during its cool down period after it is turned off.
