U321H

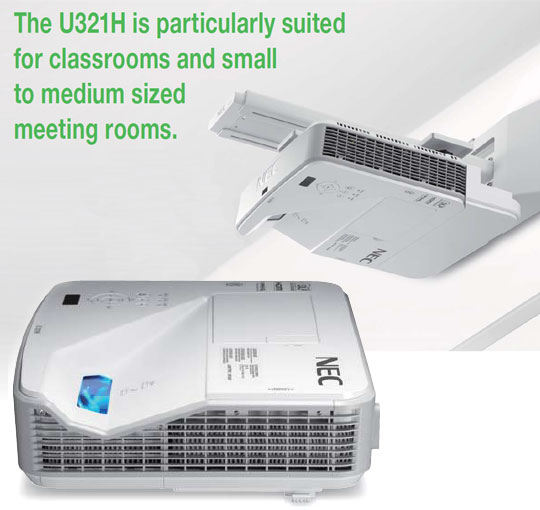

With 1080p resolution and 10,000:1 contrast, the U321H delivers perfect image quality for very detailed content, as well as high quality movies, including 3D content from Blu-ray players, thanks to its HDMI 3D support. This ultrashort throw projector returns free space to small to medium sized classrooms and meeting rooms, projecting onto screen sizes between 85-100" without creating shadow or glare. Users of demanding applications in higher education, such as design and engineering applications, will appreciate the 1080p resolution for the high level of detail achieved. Interactivity can be added retrospectively to this model with a multi-pen and/or multi-touch option.

Benefits

Great picture quality
Thanks to 1080p resolution and 10,000:1 contrast.
Optional multi-pen and touch Interactivity
With auto-calibration on any kind of surface.
3D ready
For playback of engaging 3D applications and movies.
Almost no shadow or glare
Thanks to the ultra-short throwing distance.
Future proof connectivity
Numerous analog and digital connection　terminals, including MHL support and network　capability.

Specifications

			NP-U321H
Projection System			Single DLP® (0.65")
Resolution*1			1,920 x 1,080 (Full HD)
Lens			Manual Focus F= 2.4, f= 3.72 mm
Light source (Lamp)	Normal ECO mode		220 W
Light source (Lamp)	ECO mode off		260 W
Lamp life*2	Normal ECO mode		4,000 H
Lamp life*2	ECO mode off		3,000 H
Filter life			4,000 H

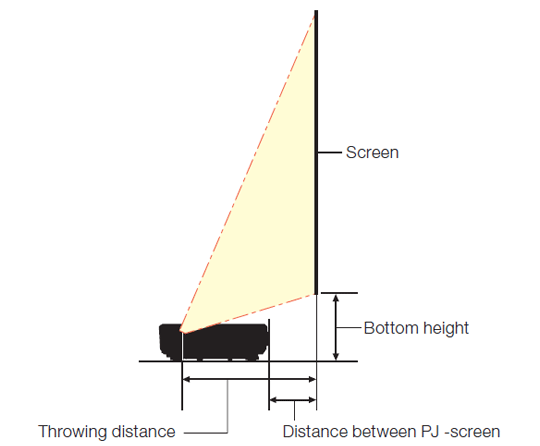

Image size			85 to 100 inches
Light output 3 4	ECO mode off		3,200 lumens
	Normal ECO mode		Approx. 80 % of ECO off
	ECO mode		Approx. 60 % of ECO off
Contrast ratio(white/black)*4			10,000 : 1 with lamp control
Maximum resolution			Up to 1080p (1,920 x 1,080)
Synchronization range	Horizontal		15 kHz to 100 kHz (RGB: 24 kHz or over)
Synchronization range	Vertical		50 Hz to 120 Hz (24Hz: Blu-ray 24P)
Keystone correction	Vertical		Manual : ± Max 5 degrees

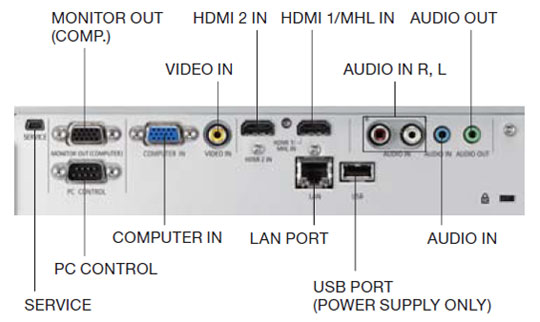

Input terminals	Computer		Mini D-sub 15 pin x 1
		Audio	Stereo mini jack x 1
	Video		RCA x 1
		Audio	(L/R) RCA x 1
	HDMI		HDMI x 2 (HDMI1 supports MHL function)
Output terminals			Mini D-sub 15 pin x 1
Output terminals		Audio	Stereo mini jack x 1
Wired LAN port			RJ- 45 (10BASE-T / 100BASE-TX) x 1
Control terminals			D-sub 9 pin x 1
USB port			Power supply only / +5V 1A x 1 Service x 1
Built-in speaker			8 W monaural
Usage environment	Operational temperature		10°C to 35 °C, up to 80 % humidity (no condensation)
Usage environment	Storage temperature		-20 °C to 60 °C, up to 90 % humidity (no condensation)
Power requirement			100 to 240 V AC, 50 Hz / 60 Hz
Input current			3.5 A to 1.5 A
Power consumption (100 to 130 V AC / 200 to 240 V AC)	ECO mode off		323 W / 312 W
	ECO mode		272 W / 264 W
	Standby (Network)		2.0 W / 2.2 W
	Standby (Normal)		0.18 W / 0.30 W

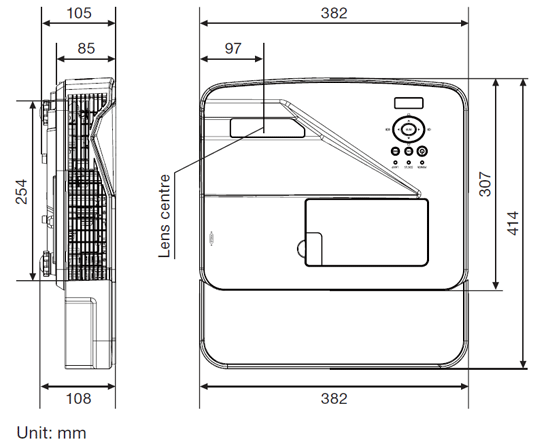

Net dimensions (W x H x D)			382 x 85 x 307 mm (not including protrusions)
Weight			4.7 kg
Gross dimensions (W x H x D)			515 x 230 x 491 mm
Gross weight			8.6 kg
Accessories			Power cord, remote control, batteries, cable cover, signal cable, CD-ROM (User’s manual / Utility software), quick guide, important information, security sticker, attachment plate

*1 : Effective pixels are more than 99.99%.
*2 :The average time span for the brightness of the lamp to be reduced by half; does not refer to the warranty period for the lamp.
*3 :This is the light output value (lumens) when the [PICTURE] mode is set to [HIGH-BRIGHT].
If any other mode is selected as the [PICTURE] mode, the light output value may drop slightly.
*4 : Compliant with ISO21118-2005
